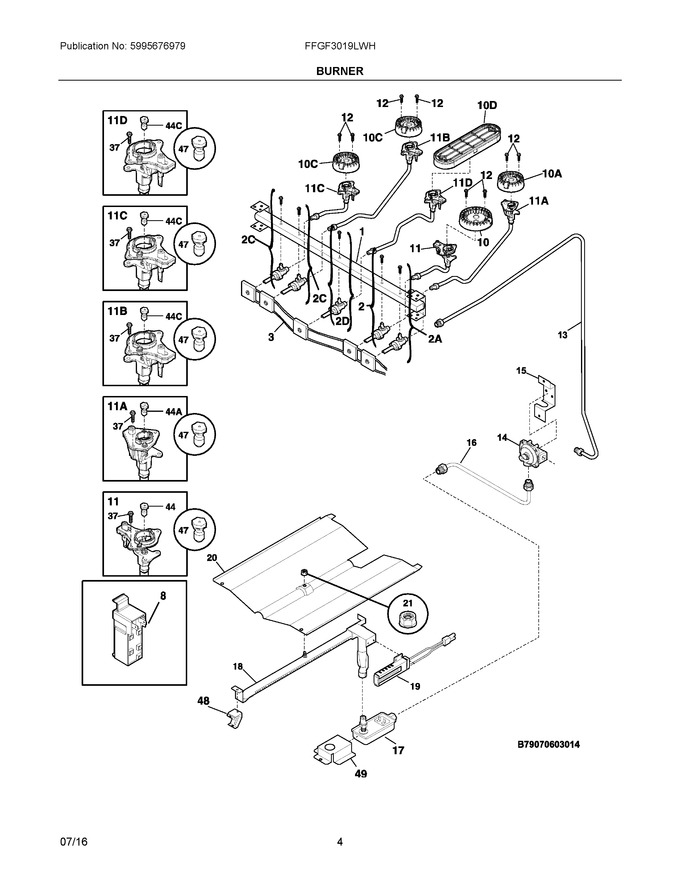

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316417901		Manifold				$ 148.30
2	5303935306		Valve, Top Burner, Blue Stem				$ 89.78
3	316580615		Harness-ignitor			Immediately	$ 121.41
8	808608804		Spark Module			Immediately	$ 102.63
10	316438600		Burner, Sealed, 14k				$ 88.67
11	316536614		Ignitor/orifice Assy., Top Burner, Right Front, 14k, W/holder, Tube				$ 124.74
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 16.85
13	316545801		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	316091711		Regulator, Pressure			Immediately	$ 108.68
15	316091600		Bracket, Regulator				$ 81.73
16	316065006		Tube, Valve To Regul, 3/8				$ 135.66
17	3203459		Valve, Safety				$ 366.71
18	316114300		Burner, Oven				$ 188.75
19	5304509706		Ignitor   (Replaces: 316489408)			Immediately	$ 210.66
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 13.48
44	316527511		Orifice, Burner, 14k				$ 22.05
47	GRLP3		Lp Conversion Kit, W/instructions				$ 63.46
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 196.88
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 102.64
11B	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 147.36
11C	316536600		Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube				$ 138.08
11D	316536623		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube				$ 164.12
2A	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 78.75
2C	5303935305		Valve, 9.5k Burner, W/mtg Screw				$ 85.84
2D	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 91.35
44A	316527504		Orifice, Burner, 5k				$ 25.20
44C	316527500		Orifice, Burner, 9.5k				$ 23.78
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 14.96
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
NI	5304494425		Harness, Ignitor   (Replaces: 316580602)				$ 96.06
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	316417518		Instructions, Lp Conversion		Appelez-nous	-
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 8.66
NIB	316257400		Bracket, Spark Module				$ 16.85
