SELECT A DIAGRAM

01 - Cover Sheet

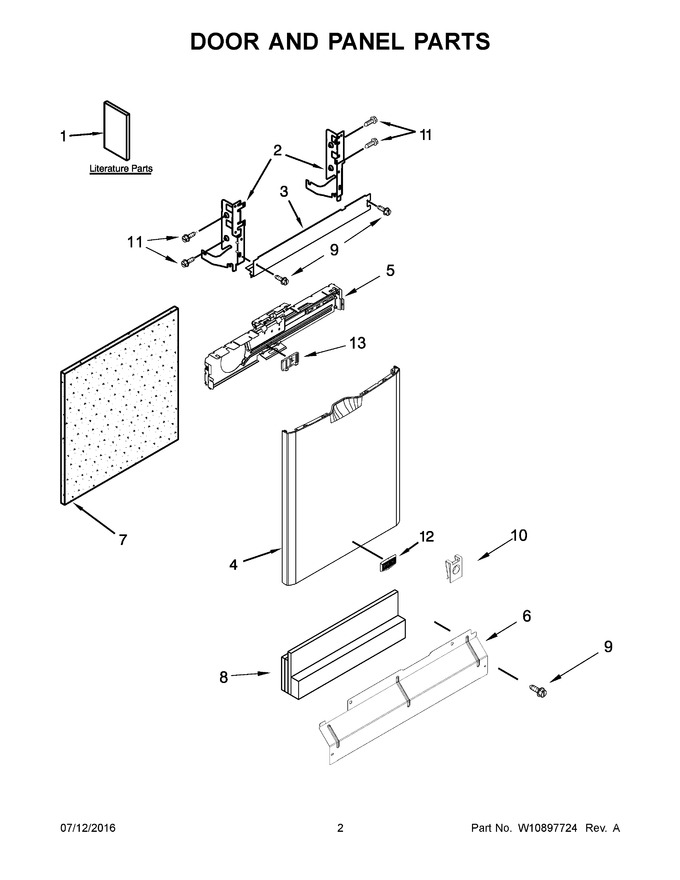

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W10803806		Front Panel (includes Item 12) (black)   (Replaces: W10562110)				$ 353.65
5	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
6	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
7	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
8	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 43.30
9	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
10	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
11	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
12	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
13	W10463662		Spacer, Control Bracket Panel				$ 49.41
1A	W10810681		Energy Guide		Appelez-nous	-
1B	W10832285		Use & Care Guide		Appelez-nous	-
1C	W10867183		Tech Sheet, English		Appelez-nous	-
1D	W10867186		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
4A	WPW10562111		Front Panel (includes Item 12) (white)   (Replaces: W10562111)				$ 330.23
4B	W10562114		Front Panel (includes Item 12) (stainless)				$ 104.42
6A	W10852732		Access Panel (white)		Appelez-nous	-
9A	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10

    View Diagram in Separate Window       Print Part List
