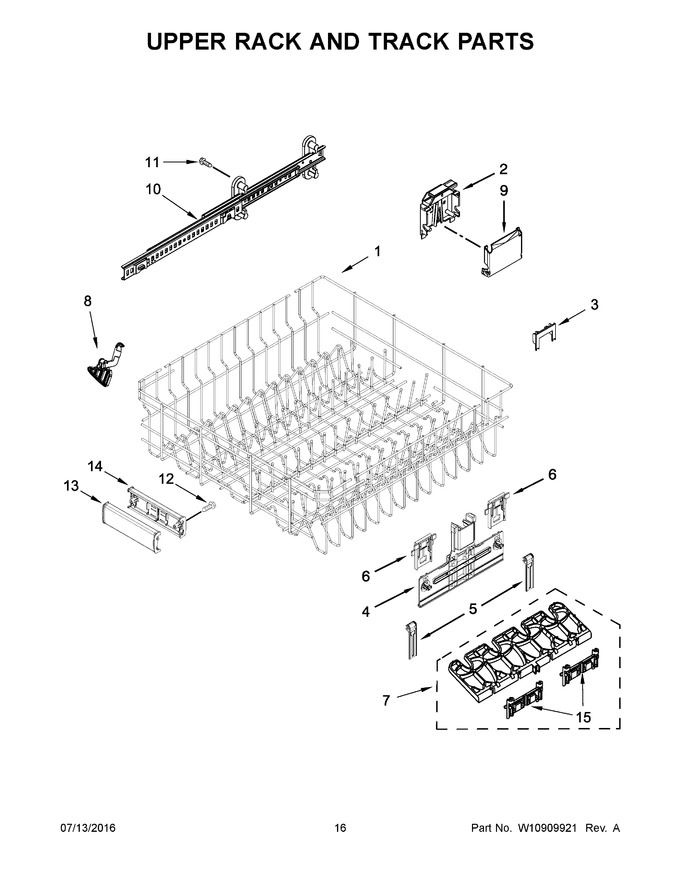

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10599464) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10195372 | Housing Adjuster (left Hand) (Replaces: W10195372) |
|
Immediately | $ 120.71 | ||||
| 3 | WPW10250160 | Clip, Adjuster (Replaces: W10250160) |
|
Immediately | $ 49.20 | ||||
| 4 | WPW10546503 | Adjuster Assembly (Replaces: W10546503) |
|
Immediately | $ 43.81 | ||||
| 5 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 35.89 | ||||
| 6 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 51.32 | ||||
| 7 | WPW10082649 | Cupshelf Assembly (Replaces: W10082649) |
|
Immediately | $ 109.45 | ||||
| 8 | W10919676 | Clip, Dispenser Guard (Replaces: W10752617) |
|
Immediately | $ 10.00 | ||||
| 9 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 7.61 | ||||
| 10 | W11259785 | Track Assembly (left Hand) (Replaces: W10781301) |
|
Immediately | $ 90.16 | ||||
| 11 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 12 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 13 | W10635042 | Handle, Dishrack (front) |
|
$ 96.25 | |||||
| 14 | W10562068 | Handle, Dishrack (rear) |
|
$ 28.00 | |||||
| 15 | WPW10082848 | Clip, Cupshelf (Replaces: W10082848) |
|
Immediately | $ 8.27 | ||||
| 10A | W11259786 | Track Assembly (right Hand) (Replaces: W10781305) |
|
Immediately | $ 96.80 | ||||
| 2A | WPW10195373 | Housing Adjuster (right Hand) (Replaces: W10195373) |
|
$ 83.52 |
