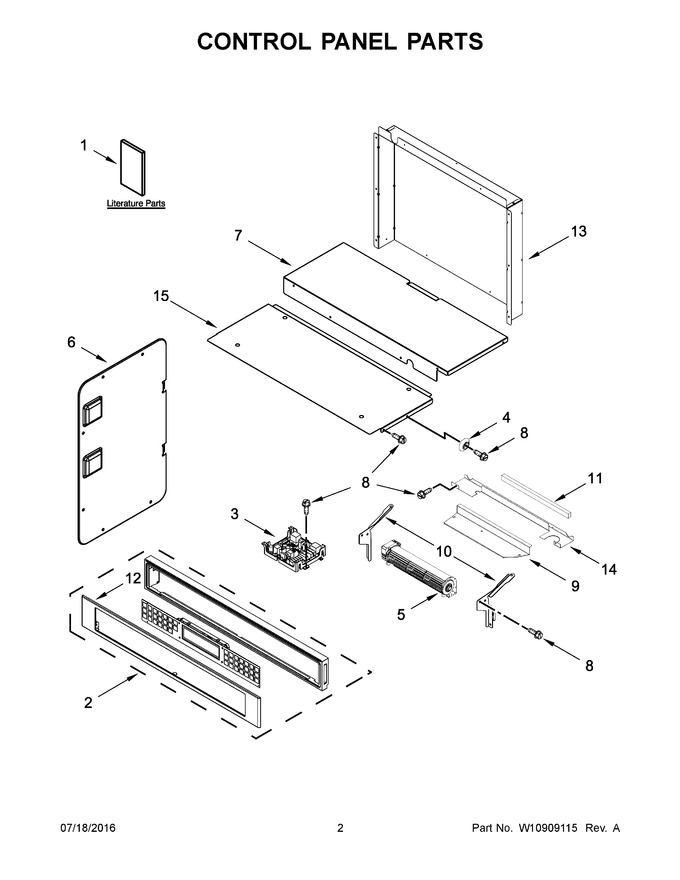

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10888962 | Instructions, Installation |
|
- | |||||
| 2 | W10909788 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10877120) |
|
$ 631.71 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 497.50 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 313.73 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 74.72 | |||||
| 7 | W10283032 | Chassis, Cover Top Back 27 |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10909789 | Skin, Control Panel (black Stainless) (Replaces: W10861075) |
|
$ 470.23 | |||||
| 13 | W10519703 | Cover, Back Duct |
|
- | |||||
| 14 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10643472 | Guide, Use & Care (oven) |
|
- | |||||
| 1B | W10643473 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W10756611 | Sheet, Tech (english) |
|
- | |||||
| 1D | W10756612 | Sheet, Tech (french) |
|
- | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 20.01 | ||||
| NI | 4454949 | Holder, Fuse |
|
$ 85.72 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11157180 | Harness, Main (Replaces: W10789996) |
|
$ 230.41 | |||||
| NI | W10789995 | Harness, Signal |
|
$ 78.26 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 107.08 | |||||
| NI | W10603949 | Harness, Communication |
|
$ 142.26 | |||||
| NI | W10874060 | Harness, Inverter (Replaces: W10406103) |
|
$ 133.84 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 |
