01 - Cover Sheet

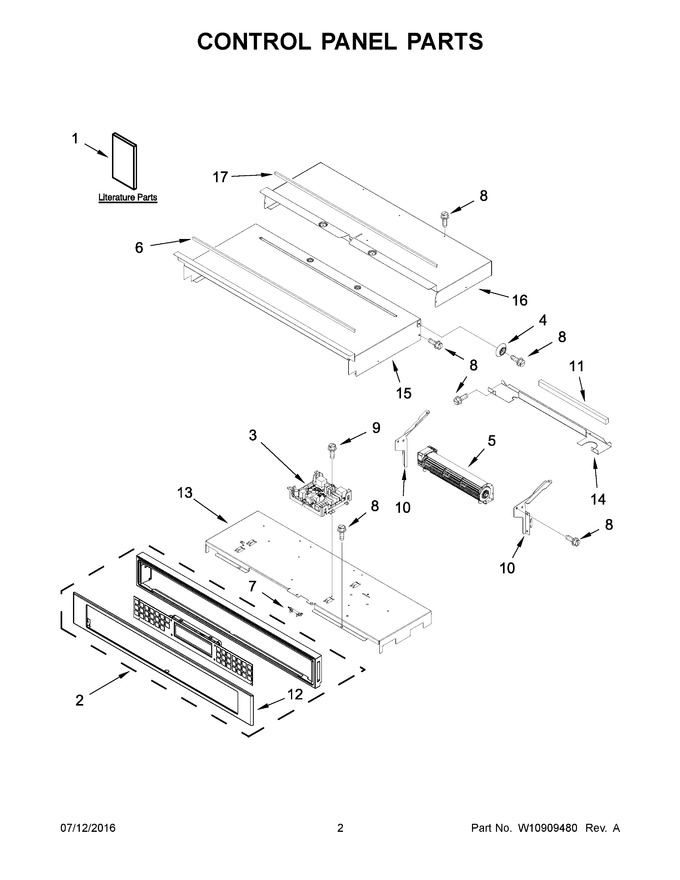

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643471 | Guide, Use & Care |
|
- | |||||
| 2 | W10910055 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10877108) |
|
- | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 497.50 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 313.73 | ||||
| 6 | W11226313 | Gasket, Rubber (Replaces: W10671226) |
|
$ 21.96 | |||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 25.43 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10909789 | Skin, Control Panel (black Stainless) (Replaces: W10861075) |
|
$ 470.23 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318193 | Chassis, Cover Top Front 27 |
|
$ 122.47 | |||||
| 16 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 17 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10888961 | Instructions, Installation |
|
- | |||||
| 1B | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W10756610 | Sheet, Tech |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 40.88 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10632451 | Harness, Main |
|
$ 308.20 | |||||
| NI | W11157218 | Harness, Signal (Replaces: W10603909) |
|
$ 107.72 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 107.08 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 |
