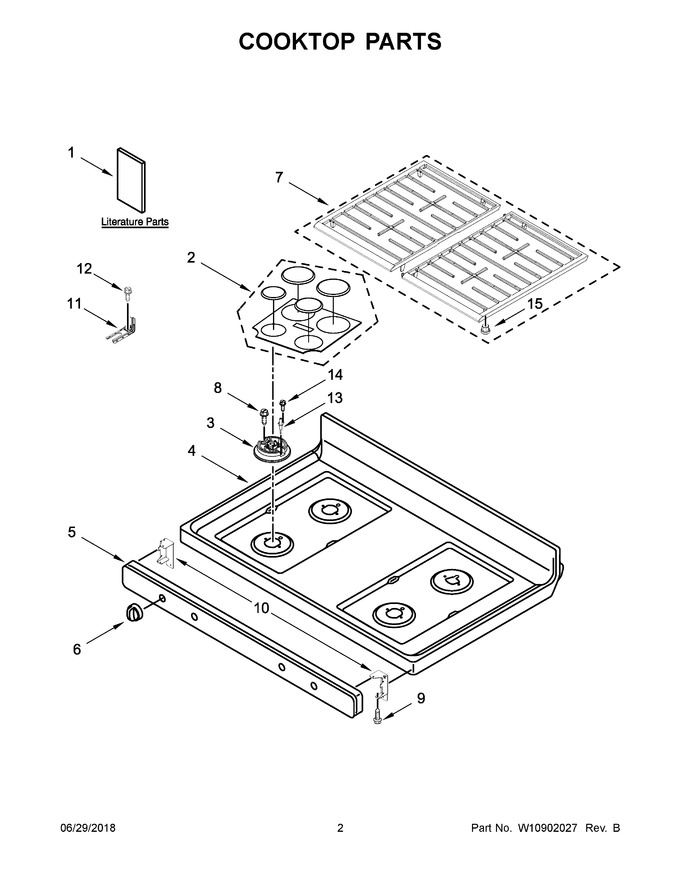

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11122558 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183375 | Set, Burner Cap (black) (Replaces: W10183375) |
|
$ 154.94 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 4 | W10366732 | Cooktop (black) |
|
- | |||||
| 5 | W10444447 | Panel, Manifold (black) |
|
- | |||||
| 6 | W10819917 | Knob, Control (black) (Replaces: W10676218) |
|
Immediately | $ 23.56 | ||||
| 7 | W11394363 | Set, Grate Burner (black) (Replaces: W10695047) |
|
$ 357.58 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 13 | WPW10515459 | Electrode (Replaces: W11194809) |
|
Immediately | $ 43.77 | ||||
| 14 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 15 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 1A | W11122569 | Guide, Use & Care |
|
- | |||||
| 1B | W10538793 | Sheet, Tech (english) |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 4A | W10366731 | Cooktop (white) |
|
- | |||||
| 4B | W10771754 | Cooktop (biscuit) (Replaces: W10686142) |
|
$ 400.29 | |||||
| 5A | W10444446 | Panel, Manifold (white) |
|
$ 292.47 | |||||
| 5B | W10444448 | Panel, Manifold (biscuit) |
|
- | |||||
| 6A | W10909673 | Knob, Control (white) (Replaces: W10676219) |
|
- | |||||
| 6B | W10676220 | Knob, Control (biscuit) |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10797422 | Harness, Main |
|
- | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 160.90 |
