01 - Cover Sheet

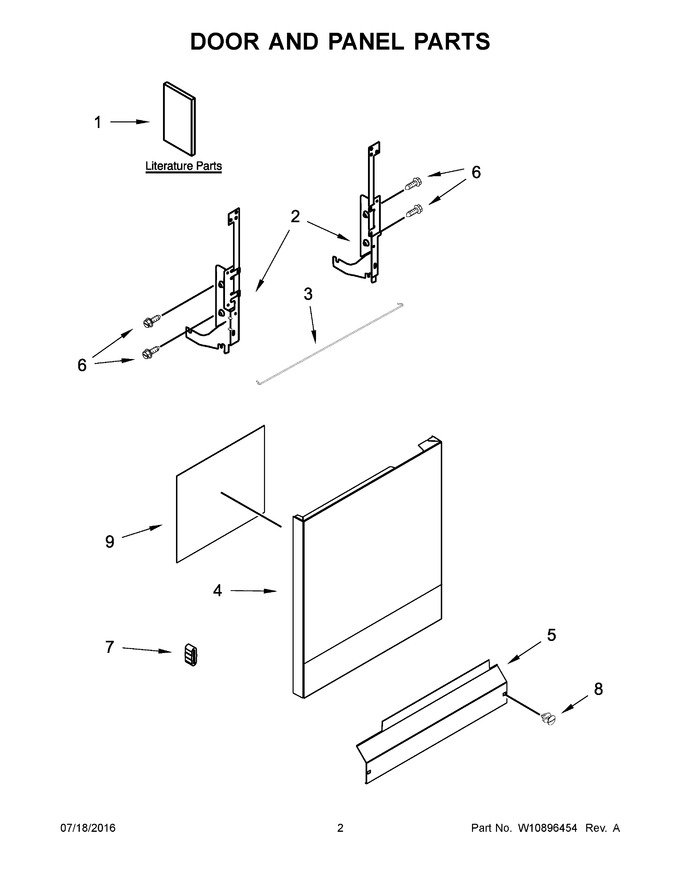

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10380392		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	WPW10274896		Panel Front (white)   (Replaces: W10274896)				$ 362.51
5	WPW10441014		Access Panel (white)   (Replaces: W10441014)				$ 139.29
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.68
8	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
9	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
1A	W10837798		Energy Guide		Appelez-nous	-
1B	W10667786		Use & Care Guide		Appelez-nous	-
1C	W10849767		Tech Sheet, English		Appelez-nous	-
1D	W10849768		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
