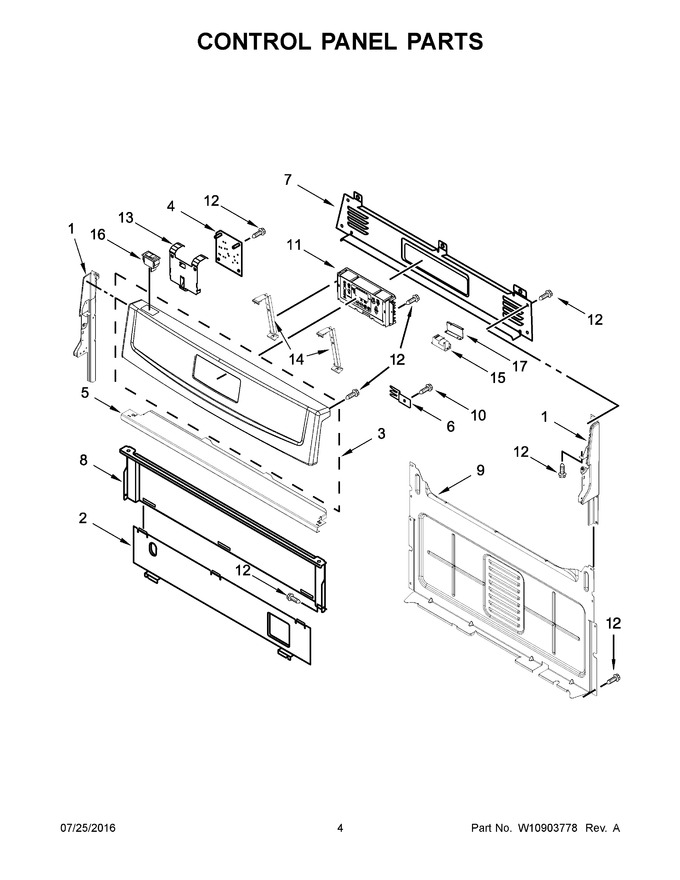

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 2 | 8053505 | Shield, Heat |
|
$ 157.99 | |||||
| 3 | W10696186 | Panel, Console (stainless) |
|
- | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 239.59 | ||||
| 5 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 6 | 8523412 | Bracket, Rear Cooktop |
|
$ 159.90 | |||||
| 7 | W10198745 | Cover, Upper |
|
$ 122.76 | |||||
| 8 | W10192841 | Shield, Heat |
|
$ 101.61 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | WPW10687554 | Control, Range (black) (Replaces: W10687554) |
|
$ 358.12 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 13 | W10516463 | Bracket, Dsi |
|
- | |||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 80.77 | ||||
| 15 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 307.06 | ||||
| 16 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 89.48 | |||||
| 17 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 40.44 |
