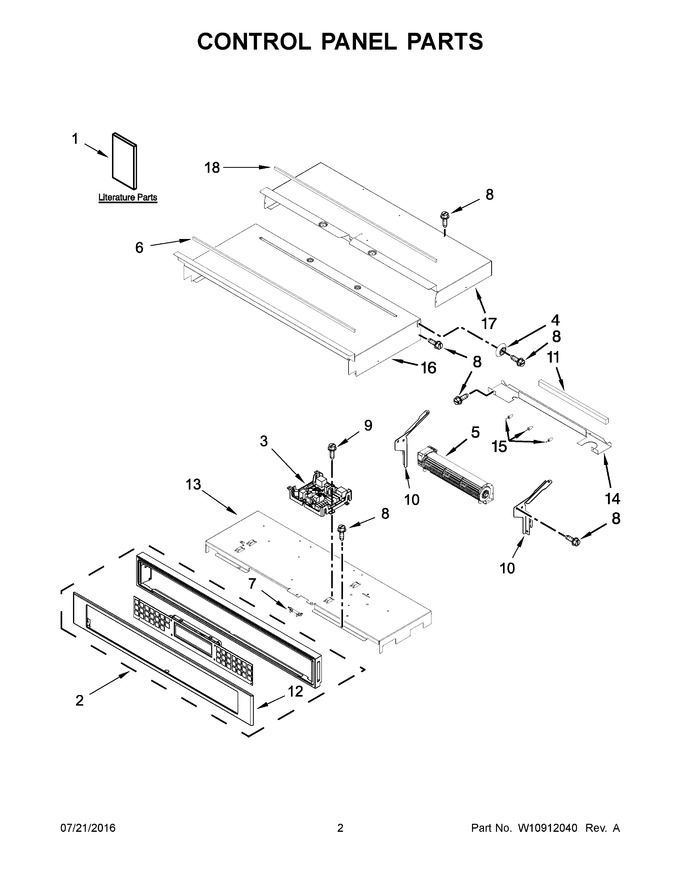

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643471 | Guide, Use & Care |
|
- | |||||
| 2 | W11087449 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10890577) |
|
$ 733.94 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 456.49 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 348.59 | ||||
| 6 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 89.66 | |||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10436435) |
|
Immediately | $ 35.50 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588744 | Skin, Control Panel (black) |
|
$ 258.96 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 18 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588746 | Skin, Control Panel (white) |
|
- | |||||
| 12B | W10588740 | Skin, Control Panel (stainless) |
|
$ 214.05 | |||||
| 12C | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 285.61 | |||||
| 1A | W10725670 | Instructions, Installation |
|
- | |||||
| 1B | W10861943 | Sheet, Tech |
|
- | |||||
| 2A | W10916776 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W10890572) |
|
$ 627.59 | |||||
| 2B | W11086141 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10890574) |
|
Immediately | $ 799.41 | ||||
| 2C | W11086152 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10890564) |
|
$ 770.01 | |||||
| 3A | W10801665 | Control (without Power Supply) (Replaces: W10777216) |
|
Immediately | $ 444.64 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11136133 | Harness, Main (Replaces: W10836625) |
|
- | |||||
| NI | W11157221 | Harness, Signal (Replaces: W10603944) |
|
$ 118.67 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 118.98 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 32.95 | ||||
| NI | W11177679 | Harness, Tod Jumper (Replaces: W10766377) |
|
$ 201.19 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
