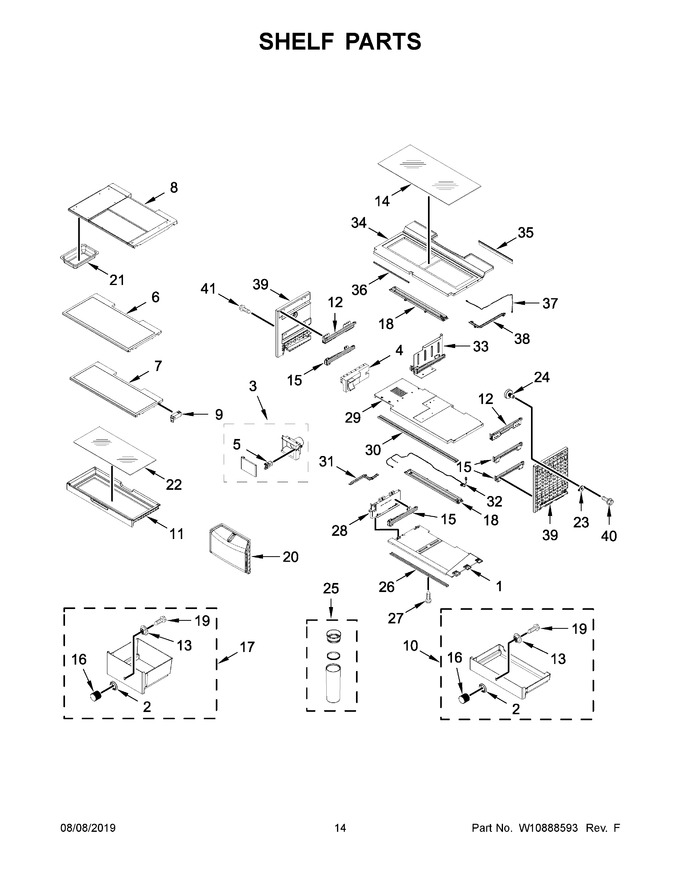

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10794563		Base, Pantry				$ 145.02
2	W10696184		Ring, Handle		Appelez-nous	-
3	W11690901		Assembly, Filter Door   (Replaces: W11347069)			Immediately	$ 115.61
4	W11084829		Insulation, Filter Housing   (Replaces: W10792132)		Appelez-nous	-
5	WP2223877		Latch, Push   (Replaces: 2223877)				$ 108.76
6	W10887818		Assembly, 15" Full Shelf   (Replaces: W10793467)				$ 305.55
7	W11284453		Assembly, 12" Full Shelf   (Replaces: W11116719)			Immediately	$ 258.85
8	W10794646		Assembly, Tuck Shelf		Appelez-nous	-
9	W11226828		Assembly, Block (front Left/back Right)   (Replaces: W10817922)			Immediately	$ 14.01
10	W11115323		Pan, Pantry   (Replaces: W10898655)				$ 248.12
11	W11563405		Assembly, Platter Shelf   (Replaces: W11082108)				$ 354.21
12	W10843722		Glide, Platter (left Hand)				$ 158.52
13	W10663641		Spacer, Handle				$ 24.82
14	W10887837		Glass, Crisper Cover   (Replaces: W10804533)			Immediately	$ 218.11
15	W10866163		Glide, Crisper (left Hand)   (Replaces: W10816001)				$ 145.63
16	W10903881		Handle		Appelez-nous	-
17	W11115324		Assembly, Crisper Pan   (Replaces: W10918349)			Immediately	$ 176.27
18	W11401419		Assembly, Light   (Replaces: W10758550)				$ 171.71
19	WPW10666373		Screw   (Replaces: W10666373)				$ 18.77
20	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 15.44
21	W11592414		Pan, Under Shelf   (Replaces: W10818078)				$ 105.51
22	W10887839		Glass, Platter   (Replaces: W10794571)				$ 218.11
23	W10840918		Flange, Side Support				$ 84.12
24	W10840920		Knob, Side Support		Appelez-nous	-
25	W10882409		Assembly, Herb Storage (includes Lid And Gasket)   (Replaces: W10795580)				$ 46.88
26	W10815941		Bar, Pantry Support		Appelez-nous	-
27	W10847999		Screw   (Replaces: W10804977)				$ 12.12
28	W10794565		Support, Pantry				$ 144.39
29	W11084818		Cover, Pantry   (Replaces: W10794557)				$ 119.72
30	W10794250		Bar, Support				$ 140.12
31	W10834719		Cover, Wiring Harness		Appelez-nous	-
32	W11744510		Assembly, Pantry Wire (includes Thermistor)   (Replaces: W10779301)				$ 103.00
33	W10794550		Assembly, Center Support				$ 252.55
34	W11084821		Frame, Crisper Cover   (Replaces: W10794547)			Immediately	$ 200.34
35	W10794336		Gasket, Crisper Cover (rear)		Appelez-nous	-
36	W10794242		Gasket, Crisper Cover (front)				$ 119.10
37	W10835866		Jumper, Crisper Led		Appelez-nous	-
38	W10854845		Cover, Wiring Harness		Appelez-nous	-
39	W10794553		Support, Side (left Hand)				$ 142.73
40	W10834285		Screw (grey)				$ 18.85
41	W10847999		Screw				$ 12.12
12A	W10814862		Glide, Platter (right Hand)				$ 158.51
15A	W10866166		Glide, Crisper (right Hand)   (Replaces: W10814857)				$ 145.63
39A	W10794555		Support, Side (right Hand)				$ 147.92
9A	W11666273		Assembly, Block (front Right/back Left)   (Replaces: W10817921)				$ 13.97
