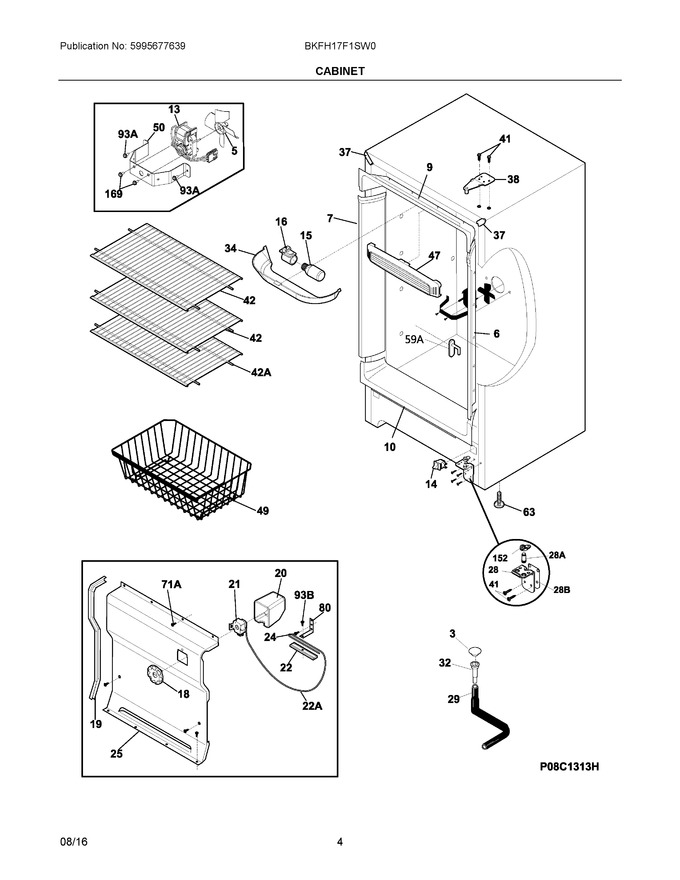

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
5	297437300		Fan Blade				$ 7.46
6	297435601		Breaker				$ 50.35
7	297435600		Breaker, W/lock				$ 43.94
9	297403901		Breaker, Top				$ 61.58
10	297403902		Breaker, Bottom				$ 67.58
12	242062801		Nameplate, White				$ 11.65
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 61.47
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
16	297139501		Socket, Light/lamp, 25 W				$ 21.69
18	216707200		Knob, Temp Control				$ 49.00
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
20	216967201		Cover, Temp Control				$ 16.87
21	5304501379		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297099250		Cover-evaporator				$ 111.25
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, Reversible, Bottom Rh				$ 16.87
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	5304528979		Shelf, 14.62 X 23.88, Wire   (Replaces: 297441905)			Immediately	$ 96.88
47	297192903		Baffle, Air			Immediately	$ 28.12
50	216394050		Bracket, Fan Motor Mount				$ 25.28
59	5304497659		Basket				$ 110.57
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
80	06594601		Bracket, Control				$ 17.64
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.94
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 11.25
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
28A	297438300		Pin, Bottom Hinge				$ 8.03
42A	297441901		Shelf, 14.50 X 23.88, Wire				$ 106.84
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	5304498525		Service Data Sheet		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
