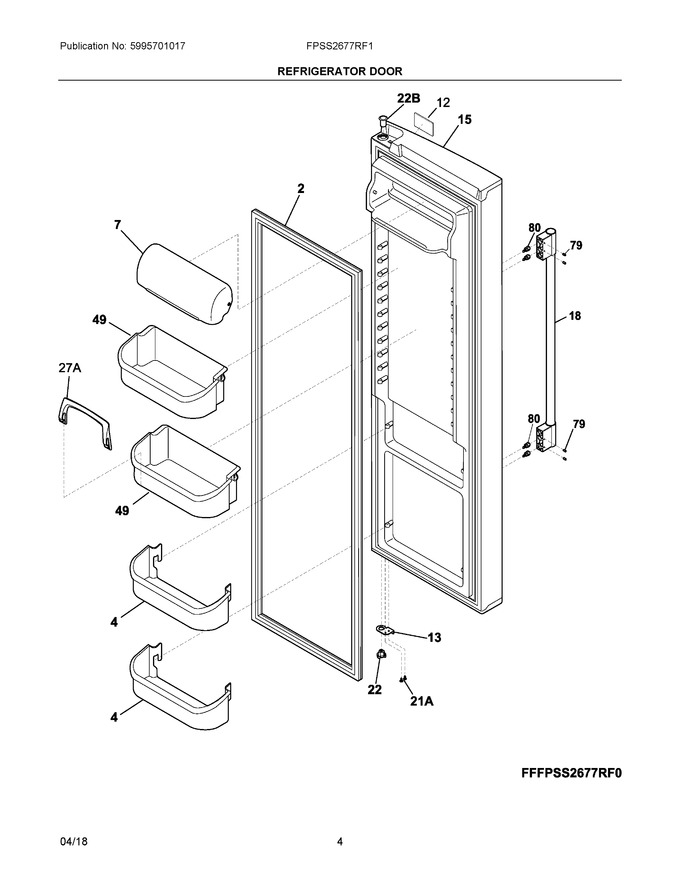

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Gasket-frzr Door, Grey, Magnetic (Replaces: 241786010) |
|
$ 105.74 | |||||
| 2 | 241786013 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786009) |
|
Immediately | $ 106.55 | ||||
| 4 | 240323002 | Bin-door, Pseudo, Clear, Bottom |
|
Immediately | $ 74.68 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 48.20 | ||||
| 13 | 241990203 | Door Stop, Black, Ref |
|
$ 22.84 | |||||
| 15 | 807460124 | Door-refr, Complete Assy, Stainless |
|
- | |||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 142.72 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 49 | 240356402 | Bin-door, Gallon (Replaces: 241808221) |
|
Immediately | $ 118.70 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 21.74 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| 27A | 241812702 | Retainer, Tall Bottle |
|
$ 18.38 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| NIA | 241780403 | Liner, Bin, Bin |
|
$ 28.77 |
