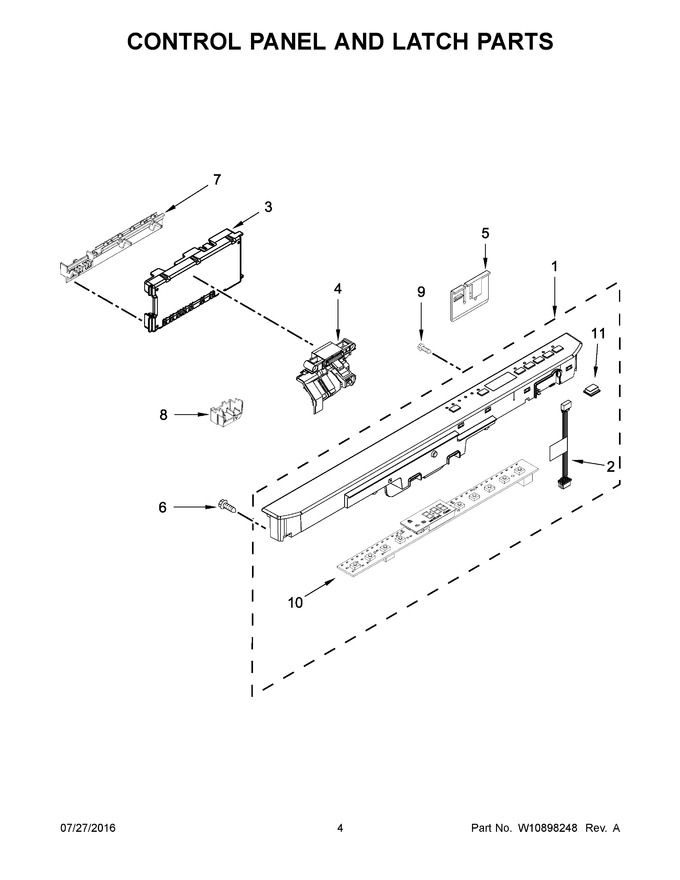

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10910624		Console Assembly (black)   (Replaces: W10839472)			Immediately	$ 257.61
2	W11028004		Jumper, 4-wire   (Replaces: W10566903)				$ 22.37
3	W10906431		Control, Electronic   (Replaces: W10838695)			Immediately	$ 234.11
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
5	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
6	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
7	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 236.98
8	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 236.98
9	WPW10348408		Screw (long)   (Replaces: W10348408)			Immediately	$ 7.55
10	W10898450		User Interface   (Replaces: W10839435)			Immediately	$ 376.60
11	W10685076		Button, Console (black)   (Replaces: W10613680)				$ 23.81
11A	W10685079		Button, Console (dolphin Grey)   (Replaces: W10620464)			Immediately	$ 23.81
11B	W10683135		Button, Console (midnight Grey)				$ 46.80
1A	W10910625		Console Assembly (white)   (Replaces: W10839473)				$ 294.14
1B	W10910626		Console Assembly (stainless)   (Replaces: W10839474)			Immediately	$ 332.61
