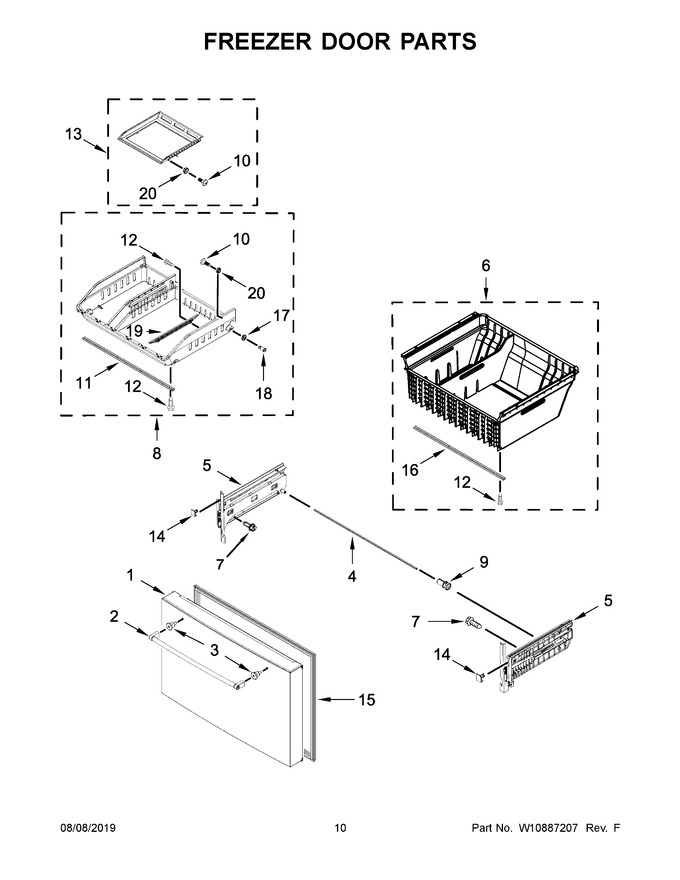

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10849518		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W10798127)				$ 1,112.15
2	W11483535		Handle, Door (stainless)   (Replaces: W10798381)				$ 175.38
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
4	W11173556		Shaft, Rack   (Replaces: W10851956)				$ 29.14
5	W10795842		Assembly, Bracket (left Hand)				$ 244.95
6	W10795850		Assembly, Bottom Pan				$ 215.67
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
8	W11102086		Assembly, Top Pan				$ 301.41
9	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 10.88
10	67006692		Screw   (Replaces: 12991401)				$ 9.71
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 139.59
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
13	W10889462		Assembly, Upper Half Pan   (Replaces: W10795834)		Appelez-nous	-
14	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 75.29
15	W11585972		Gasket, Door (grey)   (Replaces: W10868406)				$ 220.10
16	W10697812		Bar, Support		Appelez-nous	-
17	W10874021		Roller, Pan				$ 88.77
18	W11573594		Axle, Roller   (Replaces: W10643690)				$ 17.23
19	W10830658		Rail, Guard		Appelez-nous	-
20	W10742424		Roller				$ 14.45
14A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 78.04
5A	W10795846		Assembly, Bracket (right Hand)				$ 244.95

    View Diagram in Separate Window       Print Part List
