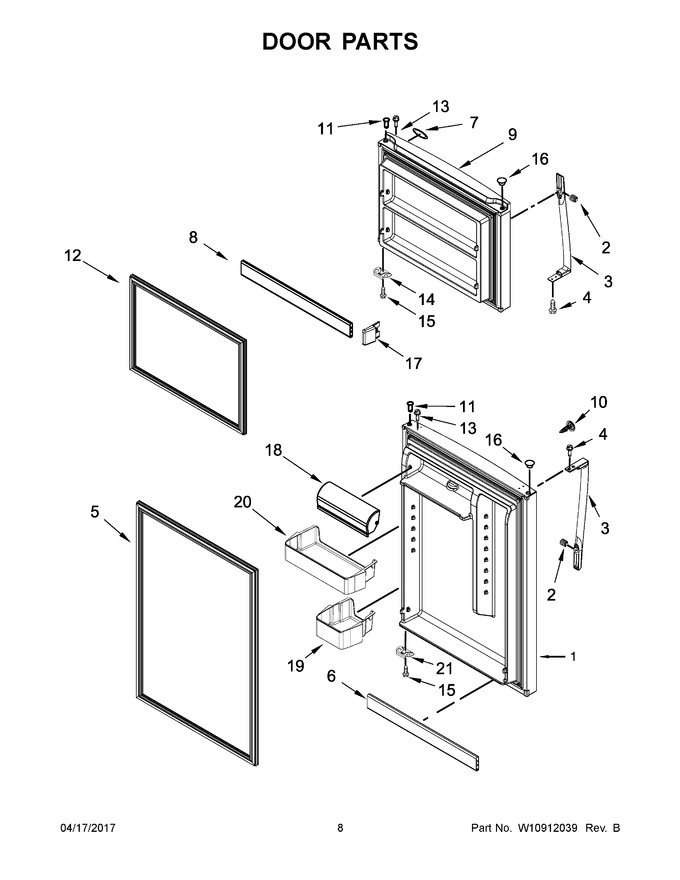

05 - Door Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10636232		Refrigerator Door (includes Illustration 5) (white)   (Replaces: W10636232)				$ 751.90
2	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
3	W10837577		Handle, Door (white)   (Replaces: W10580723)			Immediately	$ 105.87
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W10838574		Door Gasket, Magnetic (white)   (Replaces: W10638676)			Immediately	$ 88.27
6	W10592149		Trim, Door				$ 95.13
7	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 63.13
8	W10592151		Trim, Door				$ 93.32
9	LW10636404		Freezer Door (includes Illustration 12) (white)   (Replaces: W10636404)				$ 807.68
10	W10830984		Hole Plug (white)   (Replaces: W10663736)				$ 8.38
11	W11759045		Thimble-top (white)   (Replaces: W10492018)			Immediately	$ 12.34
12	W10861499		Door Gasket, Magnetic (white)   (Replaces: W10638675)			Immediately	$ 98.40
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	W10276642		Screw   (Replaces: 8533904)				$ 6.41
16	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 55.68
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WPW10308867		Bin Short   (Replaces: W10308867)				$ 73.84
20	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 89.09
21	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
10A	W10830983		Hole Plug (black)   (Replaces: W10663737)				$ 19.54
10B	W10830981		Hole Plug (biscuit)   (Replaces: W10663738)		Appelez-nous	-
10C	W10830982		Hole Plug (grey)   (Replaces: W10663739)			Immediately	$ 19.54
11A	W11189115		Thimble-top (black)   (Replaces: W10334042)				$ 12.71
11B	W10492019		Thimble-top (biscuit)		Appelez-nous	-
11C	W11676573		Thimble-top (grey)   (Replaces: W10492022)				$ 14.81
12A	W11229610		Door Gasket, Magnetic (black)   (Replaces: W10667843)			Immediately	$ 300.69
12B	W11725106		Door Gasket, Magnetic (beige)   (Replaces: W11030686)		Appelez-nous	-
12C	W11574983		Door Gasket, Magnetic (grey)   (Replaces: W11030682)				$ 92.37
16A	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
16B	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
16C	WP2254517		Hole Plug (grey)   (Replaces: 2254517)			Immediately	$ 24.34
1A	LW10672970		Refrigerator Door (includes Illustration 5) (black)   (Replaces: W10672970)				$ 724.79
1B	LW10685257		Refrigerator Door (includes Illustration 5) (biscuit)   (Replaces: W10685257)		Appelez-nous	-
1C	LW10672972		Refrigerator Door (includes Illustration 5) (stainless)   (Replaces: W10672972)				$ 842.94
1D	W10685255		Refrigerator Door (includes Illustration 5) (universal Silver)		Appelez-nous	-
3A	W10839425		Handle, Door (black)   (Replaces: W10656973)				$ 170.06
3B	W10656974		Handle, Door (biscuit)		Appelez-nous	-
3C	W10837029		Handle, Door (stainless)   (Replaces: W10653471)			Immediately	$ 188.68
3D	W10706367		Handle, Door (universal Silver)		Appelez-nous	-
5A	W11240749		Door Gasket, Magnetic (black)   (Replaces: W10678768)			Immediately	$ 300.69
5B	W11030687		Door Gasket, Magnetic (beige)		Appelez-nous	-
5C	W11784834		Door Gasket, Magnetic (grey)   (Replaces: W11030683)			Immediately	$ 223.35
7A	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 63.13
9A	LW10672964		Freezer Door (includes Illustration 12) (black)   (Replaces: W10672964)				$ 723.29
9B	LW10685227		Freezer Door (includes Illustration 12) (biscuit)   (Replaces: W10685227)		Appelez-nous	-
9C	LW10672966		Freezer Door (includes Illustration 12) (stainless)   (Replaces: W10672966)				$ 961.97
9D	LW10685226		Freezer Door (includes Illustration 12) (universal Silver)   (Replaces: W10685226)				$ 635.12
