01 - Top And Cabinet Parts


02 - Control And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Water System Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts


10 - Miscellaneous Parts, Optional Parts (not Included)

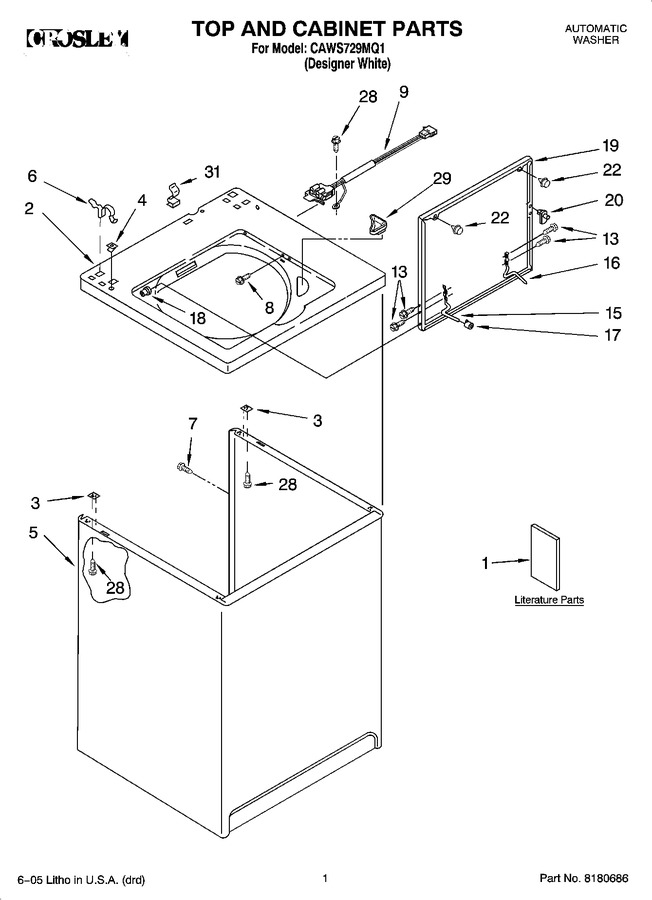

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3955915		Feature Sheet		Appelez-nous	-
1	8542484		Wiring Diagram		Appelez-nous	-
1	3957453		Energy Guide		Appelez-nous	-
1	3957165		Installation Instructions		Appelez-nous	-
1	3955874		Use & Care Guide		Appelez-nous	-
2	8271378		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
5	63424		Cabinet				$ 370.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
7	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 7.75
9	3949247V		Switch, Lid   (Replaces: 3949237)			Immediately	$ 50.87
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 7.19
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 33.43
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 7.63
19	3361411		Lid		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 7.67
22	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
28	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
29	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 12.09
31	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.32
