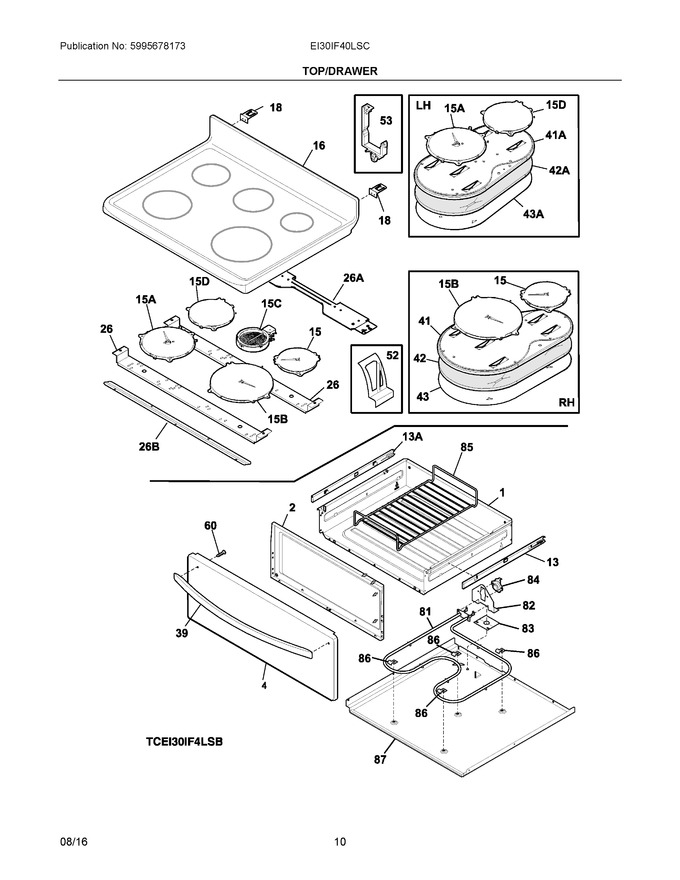

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408902		Drawer, Warmer				$ 130.46
2	316403303		Liner, Drawer				$ 67.79
4	316382700		Panel, Drawer, Stainless				$ 258.67
13	316415000		Glide, Warmer, Inner Rh   (Replaces: 316415002)				$ 65.36
15	316306000		Element, Induction Coil, 120mm				$ 265.43
16	5304490373		Maintop, Black				$ 454.18
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	316427604		Channel, Element Support, (2)		Appelez-nous	-
39	316380802		Handle, Door, Stainless				$ 278.73
41	316306401		Panel, Mounting, Induction, Rh				$ 155.93
42	316306800		Insulation, Rh				$ 98.44
43	316306601		Shield, Heat, Rh				$ 70.88
52	316461700		Clip, Element Mtg				$ 13.39
53	316301200		Clip, Wiring, Natural, (2), Induction		Appelez-nous	-
60	316439503		Screw, Handle Mtg., #10-24 X 1.000, (2)		Appelez-nous	-
81	316437300		Element, Warmer Drawer				$ 117.97
82	316093200		Bracket, Element Mtg		Appelez-nous	-
83	316093300		Shield, Terminal, Warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc, Warmer Drawer				$ 56.70
85	807328301		Rack, Warmer Drawer				$ 96.90
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	316091900		Base, Warmer Drawer				$ 221.55
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
15A	316305800		Element, Induction Coil, 180mm, Lh Front				$ 308.41
15B	316305600		Element, Induction Coil, 260mm, Rh Front				$ 368.81
15C	316307500		Element, Warmer Zone, 120mm-120w				$ 94.65
15D	316305801		Element, Induction Coil, 180mm, Lr Front				$ 233.84
26A	316352700		Bracket, Chassis Support		Appelez-nous	-
26B	316501501		Bracket, Chassis Support, Front				$ 15.33
41A	316306501		Panel, Mounting, Induction, Lh		Appelez-nous	-
42A	316306900		Insulation, Lh				$ 94.55
43A	316306701		Shield, Heat, Lh				$ 81.11
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 14.96
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	316468100		Cleaner, Smoothtop, W/sponge				$ 4.88
NI	5304516184		Harness, Warm Base   (Replaces: 316525623)				$ 31.68
NI	5304490378		Harness, Wiring, Aux, Es1040 Teis		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53
