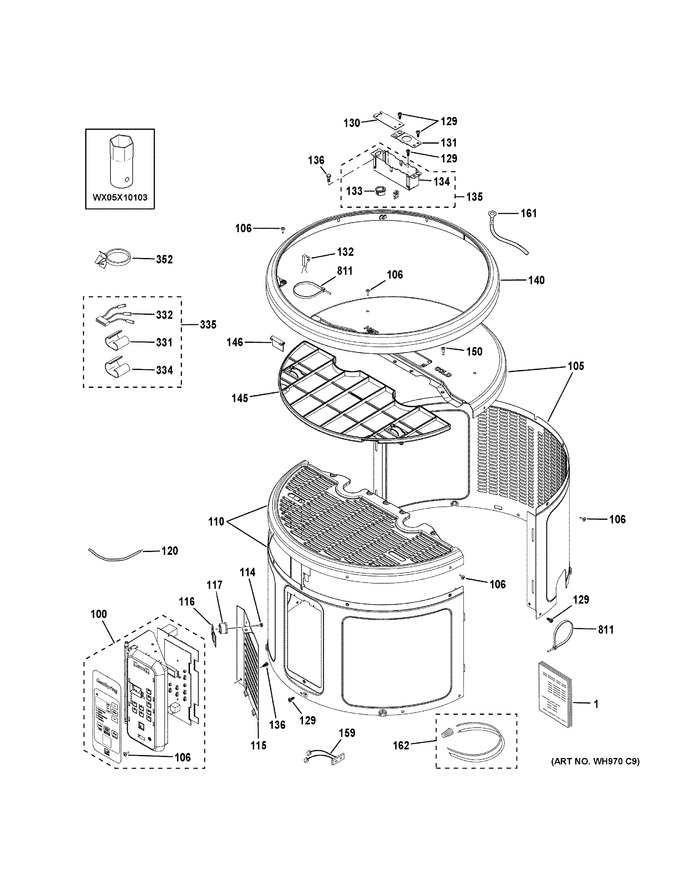

SELECT A DIAGRAM

1 - Control Panel & Shroud


2 - Body Parts


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-75035		Hybrid Water Heater		Appelez-nous	-
1	49-50302		Pm Attention Install		Appelez-nous	-
1	49-50300		Pm Use & Care		Appelez-nous	-
1	49-50312		Pm Use And Care		Appelez-nous	-
100	WS35X20581		Control Asm, Red				$ 936.33
105	WS31X10060		Rear Shroud Asm		Appelez-nous	-
106	WS02X10083		Scr 8-18 B Pnt7/16 S Red		Appelez-nous	-
110	WS35X23005		Front Shroud Red Asm		Appelez-nous	-
114	WG04A01237		Scr 8-18 B Hxw .480 S   (Replaces: WD02X10160)				$ 3.97
115	WS31X20384		Rear Control Cover		Appelez-nous	-
116	WS28X10075		Brkt Overload		Appelez-nous	-
117	WS08X20363		Overload Comp		Appelez-nous	-
120	WS19X10033		Wire (e-d) Yellow		Appelez-nous	-
129	WZ04X10001		Scr 10-32 Gx Hxws 9/16 S		Appelez-nous	-
130	WS01X20382		Cover Access J- Box		Appelez-nous	-
131	WS01X20383		Cover Fixed J- Box		Appelez-nous	-
132	WS17X21223		Sensor T5		Appelez-nous	-
133	WS02X10072		Grommet Dc (j-box)		Appelez-nous	-
134	WS01X20381		Cavity Junction Box		Appelez-nous	-
135	WS35X10073		Junction Box Asm		Appelez-nous	-
136	WS02X10087		Scr 10-32 Gx Hxw 7/16 S		Appelez-nous	-
140	WS31X10061		Trim Ring		Appelez-nous	-
145	WS31X10058		Filter Air		Appelez-nous	-
146	WS01X10053		Cover Air Filter Snap		Appelez-nous	-
150	WS02X10084		Scr 8-18 B Pnt 3/4 S Red		Appelez-nous	-
159	WS19X21002		Wire T2 Kit		Appelez-nous	-
161	WS19X10038		Ground Wire To J-box		Appelez-nous	-
162	WS19X10039		Wire L1-l2 Repair Kit		Appelez-nous	-
331	WS02X10078		Clip Sensor (t3a/t4)		Appelez-nous	-
332	WS17X21303		Wire Sensor T3a/t3b/t4		Appelez-nous	-
334	WS02X10079		Clip Sensor (t3b)		Appelez-nous	-
335	WS17X10011		Sensor Asm (t3a/t3b/t4)		Appelez-nous	-
352	WS01X21224		Tie Wire (blk)		Appelez-nous	-
811	WR02X11607		Wire Tie		Appelez-nous	-
