01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts


10 - Miscellaneous Parts, Optional Parts (not Included)

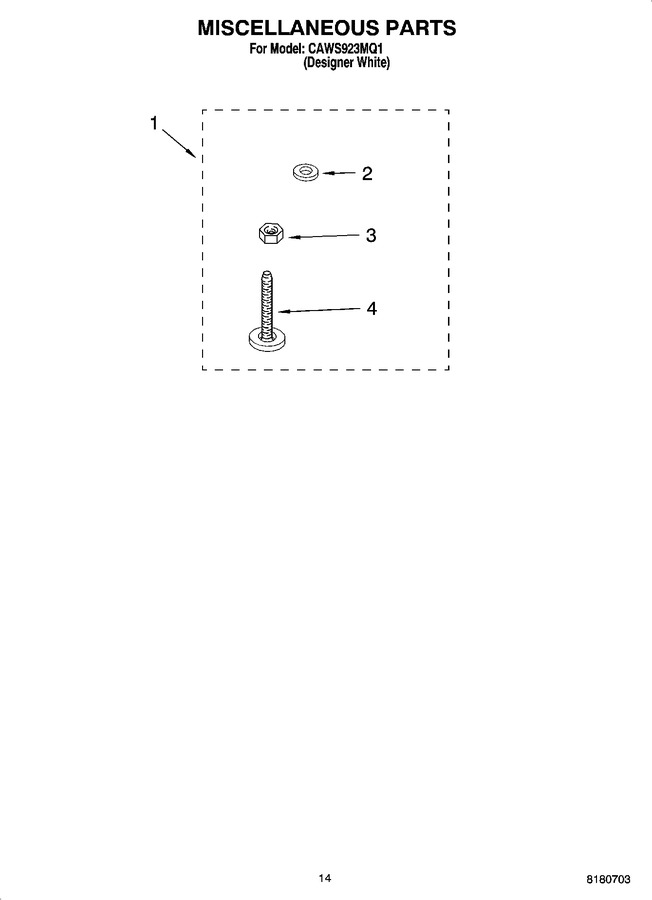

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3957361		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
3	WP3359452		Nut, Lock (2) (3/8-16)   (Replaces: 3359452)			Immediately	$ 7.19
4	WPW10001130		Foot, Front (2)   (Replaces: 389102)			Immediately	$ 7.80
	76660		Siphon Break Kit   (Replaces: 285320)			Immediately	$ 133.25
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	367031		Drain Protector		Appelez-nous	-
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 104.39
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 91.61
