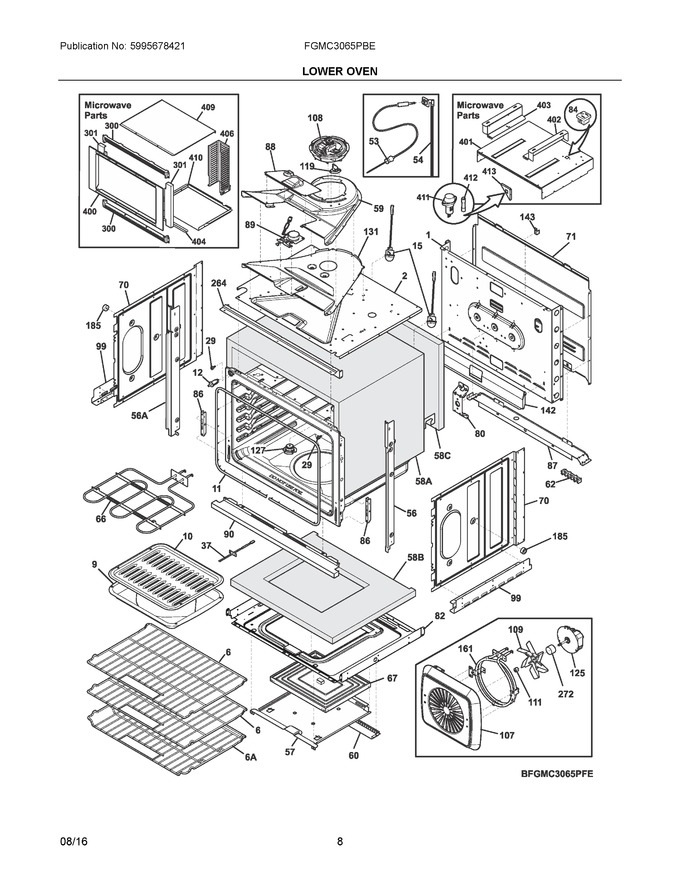

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017304		Panel, Main Back		Appelez-nous	-
2	139028100		Shield, Insulation, Top		Appelez-nous	-
6	139011600		Rack, Oven, W/handle				$ 124.74
9	318138801		Pan, Broiler Optional Accessory		Appelez-nous	-
10	318126401		Insert, Broiler Pan Optional Accessory		Appelez-nous	-
11	807545502		Seal, Oven Door, Gray				$ 155.93
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
29	316517600		Bumper, Front, Main				$ 13.39
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 117.99
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 170.10
56	318276352		Trim, Side Filler, Black, Rh		Appelez-nous	-
57	807988901		Panel, Service, Bake Element		Appelez-nous	-
59	139027600		Duct, Cooling Fan, Upper				$ 95.29
60	807285601		Shield, Heat, Oven Bottom		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 96.90
67	318601604		Element, Hidden Bake, 2000w   (Replaces: 808650402)			Immediately	$ 289.31
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 80.05
71	139020000		Shield, Rear Wire, Main Back				$ 110.25
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	807988802		Shield, Insulation, Lower				$ 111.99
84	5304517286		Outlet, Electrical, Miniature, Black   (Replaces: 807033001)				$ 101.12
86	318561100		Receptacle, Hinge, (2)				$ 23.59
87	139020100		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 26.78
89	139021302		Motor, Latch Assy., 2 Pole				$ 163.96
90	139008707		Trim, Base, Black				$ 59.85
99	318256201		Bracket, Side, Bottom, (2)				$ 63.00
107	139013903		Cover, Convection Fan				$ 52.07
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 218.45
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
119	318578506		Thermostat, Safety, 105c Open			Immediately	$ 64.66
125	139008502		Motor, Convection Fan				$ 154.98
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 11.14
131	139027700		Duct, Cooling Fan, Lower				$ 81.11
142	139018000		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 52.92
185	318531800		Spacer, Oven Shield, (2)				$ 14.18
264	139017601		Trim, Vent, Black, Front				$ 53.09
272	139021700		Tube, Convection Fan				$ 19.69
300	318925001		Trim, Microwave Frame, Black, Top/bottom				$ 81.17
301	318925101		Trim, Microwave Frame, Black, Sides, (2)				$ 68.46
400	318930206		Frame, Microwave, Black		Appelez-nous	-
401	139085502		Plate, Support, 30", Microwave				$ 139.02
402	5304505859		Support, Basepad, Rh		Appelez-nous	-
403	5304505860		Support, Basepad, Lh		Appelez-nous	-
404	5304505857		Bracket, Bottom Trim				$ 39.38
406	318277201		Shield, Microwave Rear		Appelez-nous	-
409	5304505861		Bracket, Top Trim		Appelez-nous	-
410	5304505858		Shield, Microwave Flue		Appelez-nous	-
411	318647300		Holder, Fuse   (Replaces: 318576200)			Immediately	$ 241.92
412	318647300		Fuse, 20 Amp   (Replaces: 318576100)			Immediately	$ 241.92
413	807874501		Gusset, Fuse Mtg.				$ 87.41
56A	318276353		Trim, Side Filler, Black, Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	807989001		Insulation, Oven Bottom				$ 102.78
58C	139021400		Insulation, Oven Back		Appelez-nous	-
6A	139012400		Rack, Oven, Offset, W/handle				$ 181.34
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 14.96
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (8)				$ 12.02
NI	318165800		Spacer, Glass, Foam				$ 19.69
NI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 193.81
NI	5304490877		Harness, Wiring, Main				$ 164.31
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 42.98
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NI	240442708		Screw, 10-32 X 3/4, (4)   (Replaces: 5304400794)				$ 9.27
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 17.69
NIA	318579001		Bracket, Wire				$ 11.08
NIA	807448002		Harness, Wiring, Latch Motor		Appelez-nous	-
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIA	318231870		Wiring Harness, Bake Element				$ 92.69
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	5303307406		Screw, 6-32 X 3/8, Black, (2)				$ 11.29
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.36
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NIB	5303289910		Screw, Truss Sqdr, 8a X 1				$ 6.30
