SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)

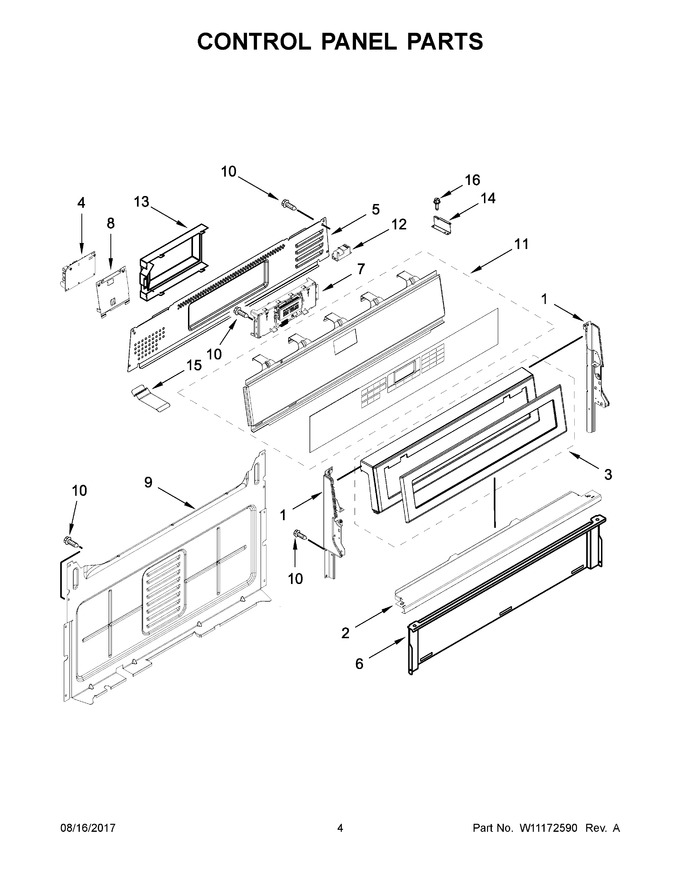

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)				$ 153.83
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W10645846		Console (black)				$ 321.25
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
5	W10198745		Cover, Upper				$ 128.90
6	W10192841		Shield, Heat				$ 106.69
7	WPW10340325		Control, Mrc   (Replaces: W10340325)				$ 472.01
8	W10762981		Bracket, Mounting				$ 76.42
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
11	W11034482		Assembly, Active Overlay (black)   (Replaces: W10884364)			Immediately	$ 371.39
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
13	W10158780		Cover, Rear Fan				$ 118.48
14	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
15	WPW10551614		Spreader, Clip-spring   (Replaces: W10551614)				$ 13.73
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11A	W11034481		Assembly, Active Overlay (white)   (Replaces: W10887358)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 60.83
3A	W10645847		Console (white)				$ 313.67
