01 - Cover Sheet

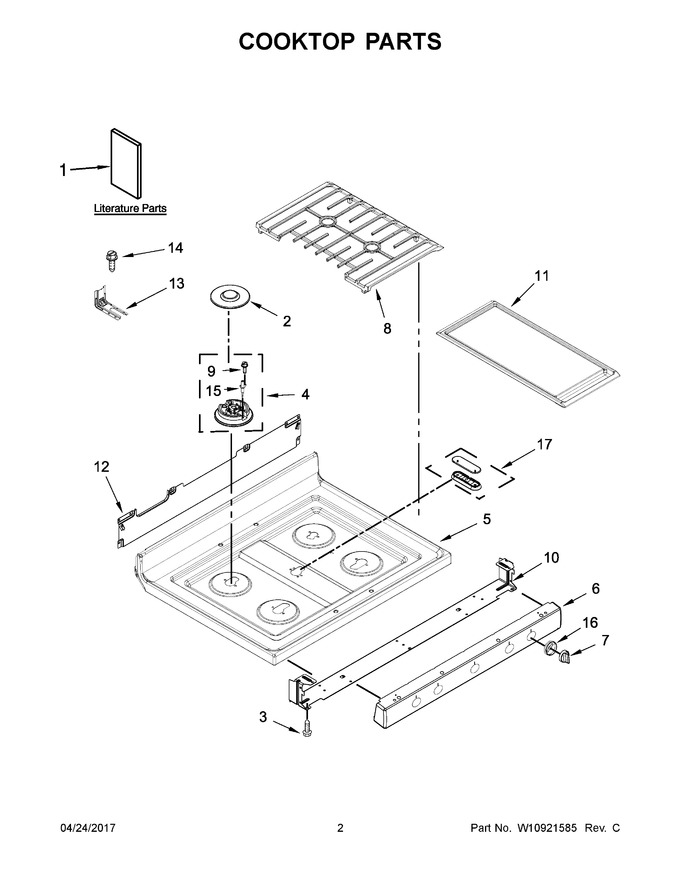

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694025 | Instructions, Installation |
|
- | |||||
| 2 | W10881749 | Set, Burner Cap (black (set Of 4)) (Replaces: W10850506) |
|
$ 111.69 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 5 | W10884167 | Cooktop (black) |
|
- | |||||
| 6 | W11028196 | Panel, Manifold (stainless) (Replaces: W10861559) |
|
- | |||||
| 7 | W11190815 | Knob, Control (stainless) (Replaces: W10858253) |
|
Immediately | $ 73.51 | ||||
| 8 | W11381652 | Set, Grate (black) (Replaces: W10655132) |
|
$ 387.72 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Manifold Panel |
|
- | |||||
| 11 | W10347385 | Kit, Griddle |
|
- | |||||
| 12 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 14 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 15 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 16 | W11223011 | Bezel (stainless) (Replaces: W10876919) |
|
Immediately | $ 63.89 | ||||
| 17 | W11162114 | Spreader, Flame (Replaces: W10298664) |
|
$ 89.90 | |||||
| 1A | W10667179 | Guide, Use & Care |
|
- | |||||
| 1B | W10538797 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10538798 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 4A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 4B | WPW10515453 | Burner, Auxiliary (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| NI | 16515 | Wiring Harness Parts, Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W10334923 | Wiring Harness Parts, Clip, Gas Wiring |
|
- | |||||
| NI | 3196696 | Wiring Harness Parts, Clip, Harness |
|
- | |||||
| NI | W10519920 | Wiring Harness Parts, Harness, Dsi Ground |
|
$ 21.06 | |||||
| NI | W10809927 | Wiring Harness Parts, Harness, Cooktop |
|
$ 160.90 | |||||
| NI | W10797419 | Wiring Harness Parts, Harness, Main |
|
- | |||||
| NI | W11161843 | Wiring Harness Parts, Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 |
