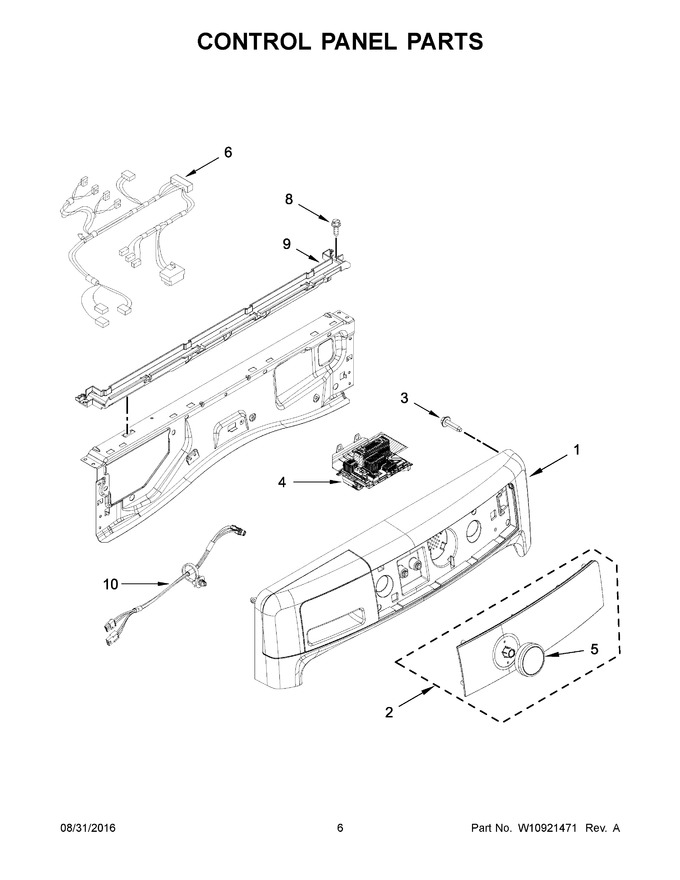

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10774411 | Assembly, Console (white) |
|
$ 317.30 | |||||
| 2 | W10748426 | Assembly, Iml (white) |
|
$ 696.86 | |||||
| 3 | W10489172 | Screw |
|
$ 11.98 | |||||
| 4 | W11171302 | Control Unit, Appliance (Replaces: W10819788) |
|
$ 536.63 | |||||
| 5 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 6 | W10685629 | Harness, Main (upper) |
|
$ 283.95 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 90.94 | |||||
| 10 | W10580186 | Harness, Ui |
|
$ 40.80 | |||||
| 1A | W10774408 | Assembly, Console (chrome Shadow) |
|
$ 336.88 | |||||
| 2A | W10748427 | Assembly, Iml (chrome Shadow) |
|
$ 731.56 |
