01 - Cover Sheet

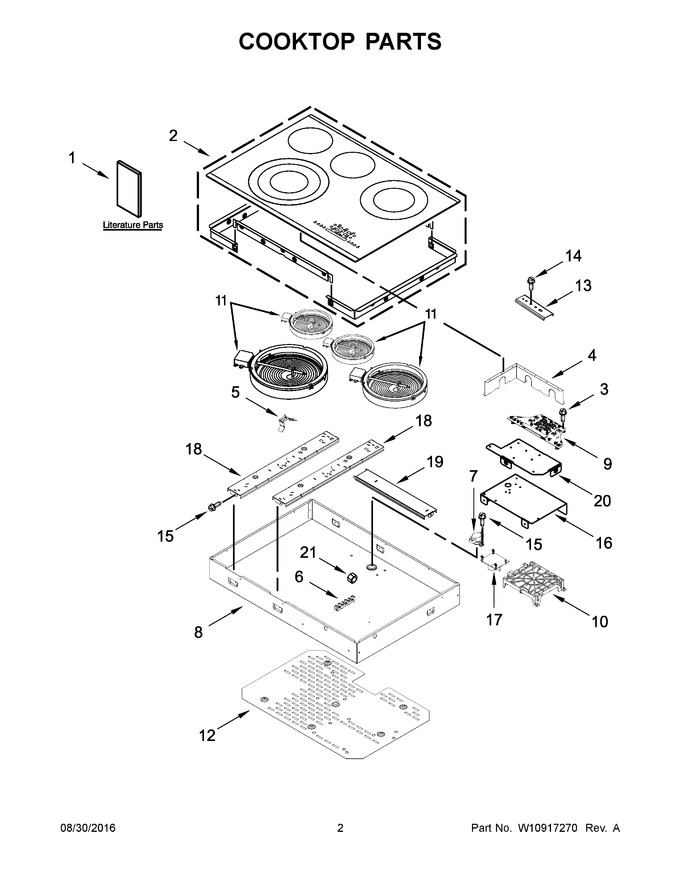

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545504 | Guide, Use & Care |
|
- | |||||
| 2 | W10581108 | Cooktop (black) (Replaces: W10566735) |
|
$ 696.21 | |||||
| 3 | WP74005233 | Screw (Replaces: 7101P520-60) |
|
$ 7.91 | |||||
| 4 | W10340183 | Shield, Heat |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 8 | W10340186 | Box, Burner |
|
- | |||||
| 9 | WPW10545370 | Interface, User (Replaces: W10545370) |
|
$ 611.63 | |||||
| 10 | W10920242 | Manager, Appliance (Replaces: W10905139) |
|
Immediately | $ 502.99 | ||||
| 11 | W10823720 | Element (3000w Triple) (left Front) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 12 | W10422067 | Bottom, Heat Shield |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | W10340195 | Box, Appliance Manager |
|
- | |||||
| 17 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 18 | W10457917 | Rail, Vertical |
|
- | |||||
| 19 | W10340178 | Rail, Horizontal |
|
- | |||||
| 20 | W10340196 | Support, User Interface |
|
- | |||||
| 21 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 11A | W11171119 | Element (1200w) (left Rear & Center) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11B | W11517959 | Element (3000w/1400w Dual) (right Rear) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 1A | W10353374 | Instructions, Installation |
|
- | |||||
| 1B | W10906261 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10906265 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | W10505192 | Cooktop (stainless) (Replaces: W10566736) |
|
$ 568.46 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 16.79 | |||||
| NI | FE02313 | Bushing |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 117.41 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10905145 | Harness, Cooktop Dbl Relay |
|
- | |||||
| NI | W10291385 | Conduit |
|
$ 127.00 | |||||
| NI | W10340184 | Gasket |
|
$ 99.09 | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | 7111P020-60 | Clamp, Wire |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 |
