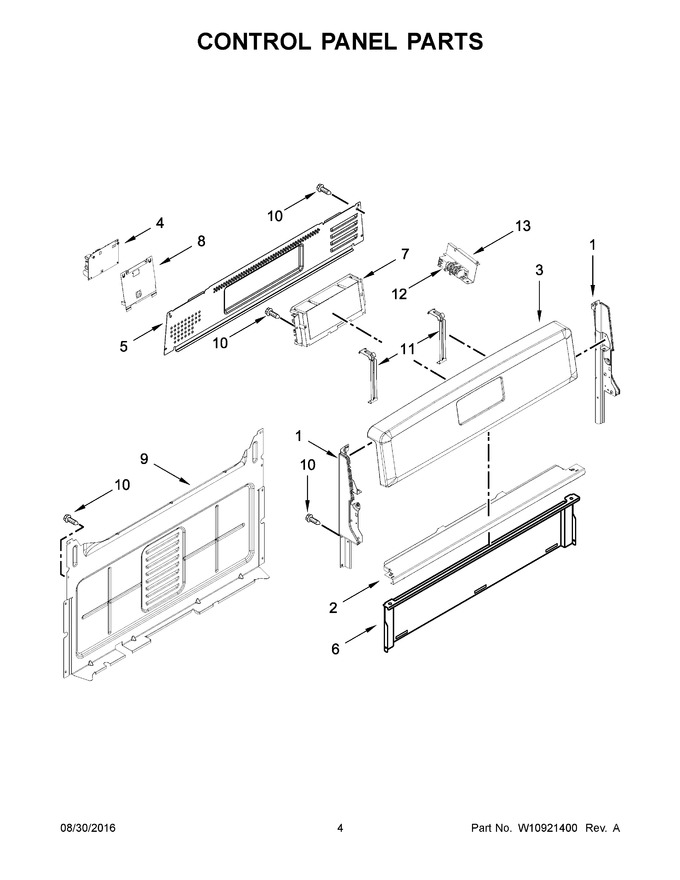

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)				$ 153.83
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W11234434		Console (black)   (Replaces: W10370100)				$ 345.31
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 239.59
5	W10198745		Cover, Upper				$ 128.90
6	W10192841		Shield, Heat				$ 106.69
7	WPW10348712		Control, Lcc195 (black)   (Replaces: W10348712)				$ 492.03
8	W10762981		Bracket, Mounting				$ 76.42
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
11	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
13	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 60.83
3A	W11234436		Console (white)   (Replaces: W10370102)				$ 345.31
3B	W10339408		Console (stainless)				$ 122.16
7A	WPW10348713		Control, Lcc195 (white)   (Replaces: W10348713)			Immediately	$ 446.96
7B	WPW10349742		Control, Lcc195 (chromium (stainless And Black Ice Models))   (Replaces: W10349742)				$ 511.04
7C	WPW10475745		Control, Lcc195 (chromium (white Ice))   (Replaces: W10475745)				$ 448.55
