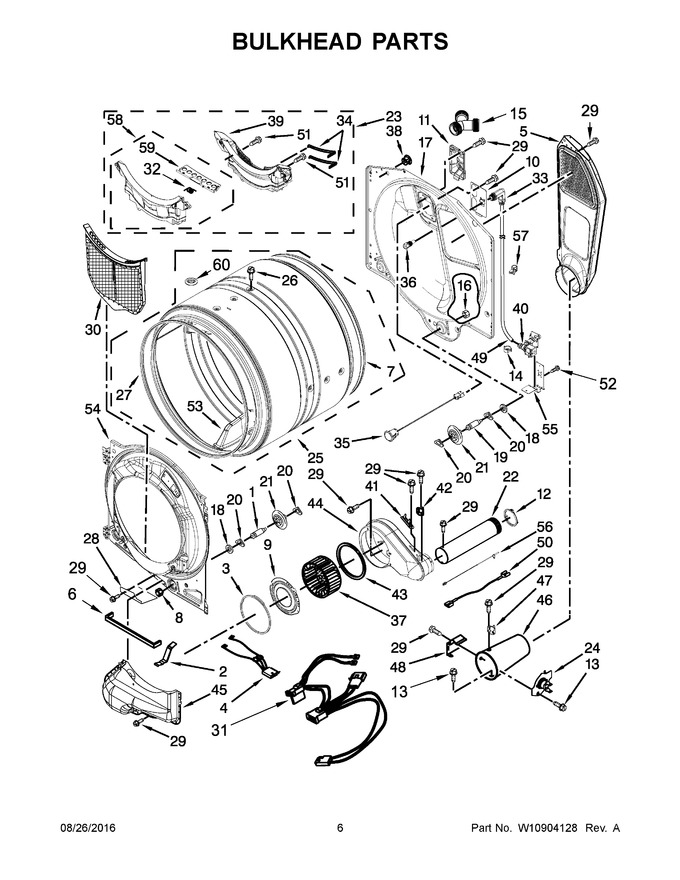

04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | W10414388 | Clip, Lint Duct |
|
$ 13.87 | |||||
| 3 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 21.32 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WPW10293765 | Assembly, Air Duct (Replaces: W10295533) |
|
$ 338.61 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 27.65 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W10211901 | Assembly, Collar |
|
$ 89.60 | |||||
| 10 | WPW10208422 | Rear Deflector (Replaces: W10208422) |
|
$ 74.00 | |||||
| 11 | W10656504 | Nozzle, Bracket Rear |
|
$ 14.46 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 14 | W10044599 | Clip, Push To Connect |
|
$ 14.29 | |||||
| 15 | WPW10336486 | Connector, Hose -"y (Replaces: W10336486) |
|
$ 73.92 | |||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 247.75 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 132.76 | ||||
| 23 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 276.56 | ||||
| 24 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 25 | W10381481 | Assembly, Drum (complete) |
|
Immediately | $ 422.32 | ||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 21.54 | ||||
| 28 | W11257251 | Shield, Blower (Replaces: W10128629) |
|
$ 68.63 | |||||
| 29 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 30 | W11758174 | Lint Screen (white) (Replaces: W10516085) |
|
Immediately | $ 52.12 | ||||
| 31 | W10708958 | Harness, Gas |
|
$ 152.87 | |||||
| 32 | W11678124 | Spring, Lint Screen Door (Replaces: W10726027) |
|
$ 14.29 | |||||
| 33 | WPW10347739 | Assembly, Nozzle And Hose (Replaces: W10347739) |
|
$ 287.40 | |||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W10460935 | Assembly, Drum Light |
|
$ 77.97 | |||||
| 36 | WPW10277503 | Assembly, Nozzle And Screen (Replaces: W10277503) |
|
$ 243.48 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 59.07 | ||||
| 38 | 8529007 | Plug, Rear Bulkhead |
|
$ 75.11 | |||||
| 39 | W11125442 | Grill, Outlet (Replaces: W10672682) |
|
$ 225.18 | |||||
| 40 | W10815373 | Valve, Water Inlet (includes Item 55) (Replaces: W10505663) |
|
Immediately | $ 125.57 | ||||
| 41 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 142.56 | ||||
| 45 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 209.24 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 176.47 | |||||
| 47 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 49 | WPW10347739 | Hose, Rear Nylon (Replaces: W10348621) |
|
$ 287.40 | |||||
| 50 | W10525140 | Jumper, Tco High Limit |
|
- | |||||
| 51 | W11590579 | Screw (Replaces: W10794806) |
|
$ 14.03 | |||||
| 52 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 53 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 38.06 | |||||
| 54 | W11712678 | Bulkhead, Front (Replaces: W10673493) |
|
Immediately | $ 238.78 | ||||
| 55 | W10815373 | Bracket, Valve (Replaces: W10510098) |
|
Immediately | $ 125.57 | ||||
| 56 | W11396709 | Thermistor, Gas Inlet (Replaces: W10623852) |
|
Immediately | $ 83.17 | ||||
| 57 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 58 | W10905013 | Assembly, Housing And Door (Replaces: W10672681) |
|
$ 215.58 | |||||
| 59 | W11156832 | Door, Lint Screen (Replaces: W10672680) |
|
Immediately | $ 56.63 | ||||
| 60 | W10665050 | Cap, Plug |
|
$ 19.19 |
