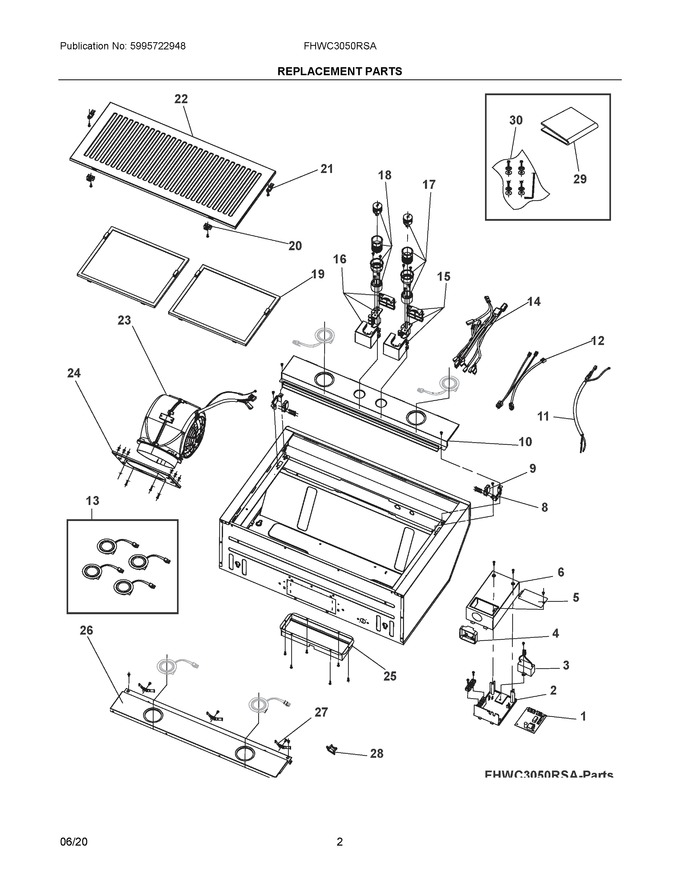

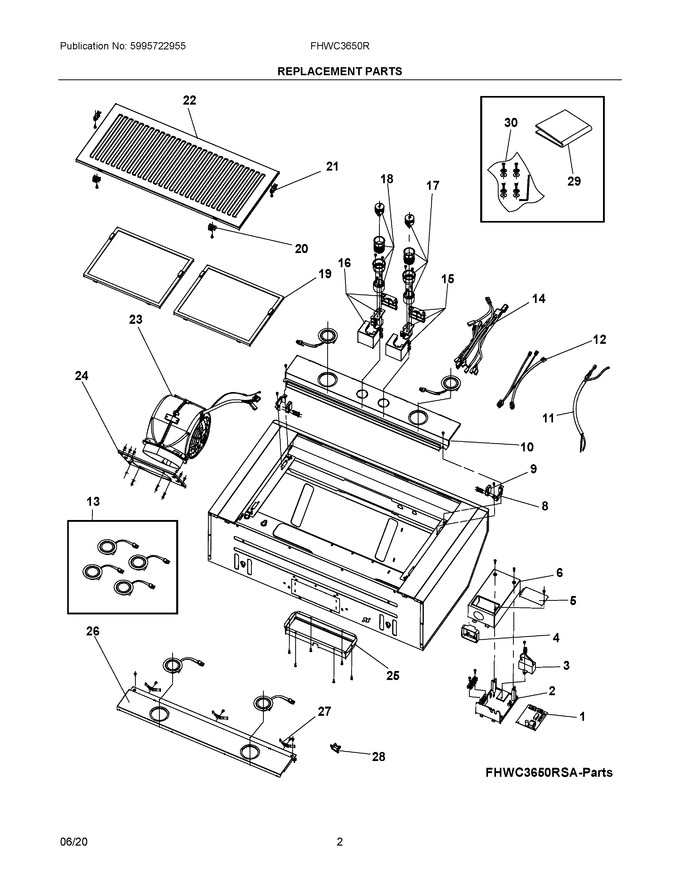

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304504573		Control, Pcb Board				$ 201.60
2	5304504574		Plate, Control Mtg.		Appelez-nous	-
3	5304504575		Capacitor, Motor Start		Appelez-nous	-
4	5304504576		Boot, Control, Plastic		Appelez-nous	-
5	5304504577		Cover, Control Box, Top				$ 17.47
6	5304504578		Cover, Control, Electrical		Appelez-nous	-
8	5304504579		Bracket, Latch, (2)				$ 21.97
9	5304504580		Latch, (2)				$ 63.00
10	5304504581		Panel, Light/switch, Front		Appelez-nous	-
11	5304504582		Harness, Power, Connector		Appelez-nous	-
12	5304504583		Harness, Power, Control, To Main		Appelez-nous	-
13	5304525391		Lamp Kit, Led, Set Of 4				$ 205.33
14	5304504584		Harness, Lights/switches, Main		Appelez-nous	-
15	5304504585		Switch Assembly, Fan, W/cover				$ 176.11
16	5304504586		Switch Assembly, Light, W/cover				$ 174.43
17	5304504587		Knob Assembly, Fan		Appelez-nous	-
18	5304504588		Knob Assembly, Light				$ 68.92
19	5304504589		Filter, Assembly, (2)				$ 151.20
20	5304504590		Hinge Bracket, Cover, Vent Grille, (2)				$ 44.89
21	5304504591		Latch, Cover, Vent Grille, (2)				$ 35.28
22	5304504592		Cover, Vent Grille		Appelez-nous	-
23	5304504593		Blower Assembly, Motor				$ 1,139.76
24	5304504594		Bracket, Install, Blower Motor				$ 84.68
25	5304504595		Damper, Vent Exhaust				$ 95.97
26	5304504596		Panel, Light, Rear		Appelez-nous	-
27	5304504597		Spring, Retainer, Filter, (3)				$ 12.65
28	5304504598		Retainer Clip, Plastic, Harness, (2)		Appelez-nous	-
29	5304504607		Manual Assy., Use & Care, Installation		Appelez-nous	-
30	5304504599		Mounting Hardware				$ 21.89
