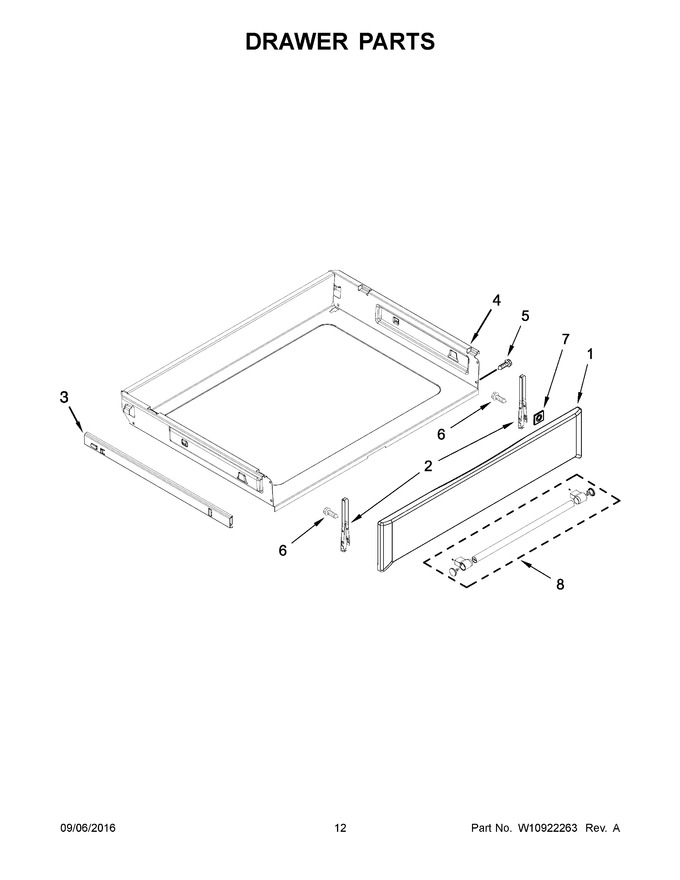

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10667937 | Panel, Drawer Front (black) |
|
- | |||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 7 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 17.43 | |||||
| 8 | W10665829 | Handle, Door (black) |
|
- | |||||
| 1A | W10667936 | Panel, Drawer Front (white) |
|
- | |||||
| 1B | W10432481 | Panel, Drawer Front (stainless) |
|
$ 276.30 | |||||
| 3A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 | ||||
| 8A | W10665830 | Handle, Door (white) |
|
$ 292.24 | |||||
| 8B | WPW10665831 | Handle, Door (stainless) (Replaces: W10665831) |
|
$ 234.70 |
