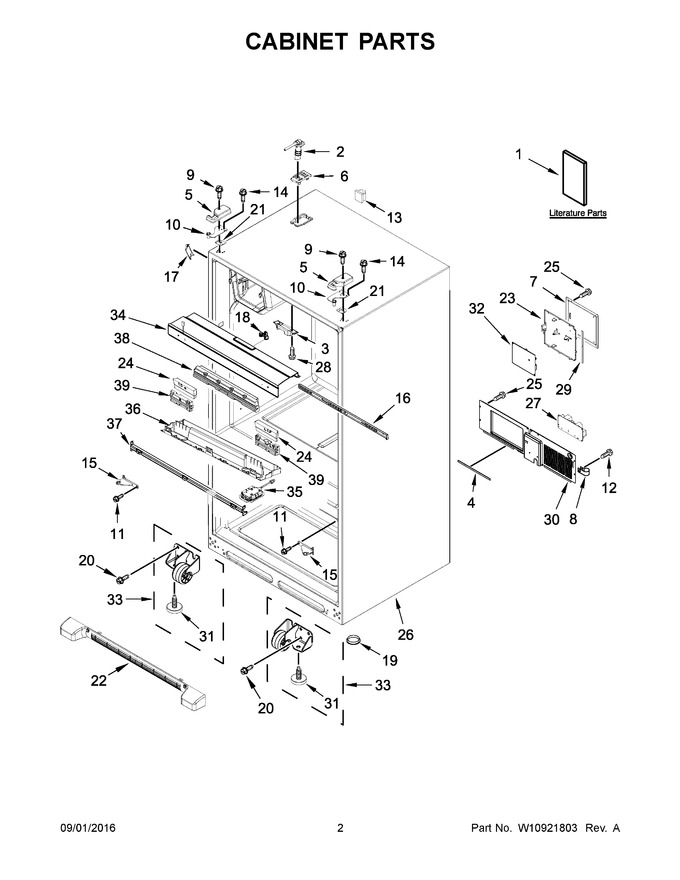

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10814198		Tech Sheet		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket				$ 13.03
5	WPW10337634		Cover, Top Hinge Left Hand (white)   (Replaces: W10337634)			Immediately	$ 23.54
6	12981401W		Cover, Fill Tube (white)				$ 13.25
7	12961602		Cover, Control Box				$ 116.19
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 31.92
11	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
13	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 8.17
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918113		Hinge, Center Left Hand (white)   (Replaces: 13000001WD)				$ 97.92
16	W10367522		Slide, Mullion Vent		Appelez-nous	-
17	12587703W		Cover, Corner (white)				$ 22.90
18	W10827867		Knob, Vent Slide		Appelez-nous	-
19	A3076901		Plug, Button (black)				$ 5.70
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
21	12999501		Shim, Top Hinge (left Hand)				$ 99.53
22	WPW10534154		Grille, Toe (white)   (Replaces: W10534154)				$ 153.66
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 85.16
24	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W10316403)		Appelez-nous	-
25	W11686675		Screw   (Replaces: 12990702)				$ 14.27
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Control, Electronic (power Supply)   (Replaces: W10226427)			Immediately	$ 351.93
28	W10854958		Screw   (Replaces: 12990302)				$ 7.90
29	12957801		Gasket, Control Box		Appelez-nous	-
30	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 208.73
31	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
32	W11035835		Board, Hv Control   (Replaces: W10614933)			Immediately	$ 502.57
33	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
34	W10877453		Assembly, Secondary Mullion (white)   (Replaces: W10831971)				$ 291.43
35	W11683243		Assembly, Led Light Module   (Replaces: W10843353)			Immediately	$ 269.91
36	W10877249		Housing, Module   (Replaces: W10820998)		Appelez-nous	-
37	W10492234		Brace, Mullion		Appelez-nous	-
38	W10311721		Mullion, Secondary		Appelez-nous	-
39	W10316401		Wedge, Spacer (left Hand & Right Hand)		Appelez-nous	-
10A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 31.90
15A	W10918164		Hinge, Center Left Hand (black)   (Replaces: 13000007ED)				$ 91.53
15B	13000002WD		Hinge, Center Right Hand (white)				$ 160.99
15C	W10918164		Hinge, Center Right Hand (black)   (Replaces: 13000008ED)				$ 91.53
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
1A	W10422734		Use & Care Guide		Appelez-nous	-
1B	W10729263		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Top Hinge (right Hand)				$ 100.60
22A	WPW10534153		Grille, Toe (black)   (Replaces: W10534153)				$ 154.57
33A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
34A	W10877456		Assembly, Secondary Mullion (black)   (Replaces: W10831969)				$ 291.26
5A	W10337647		Cover, Top Hinge Left Hand (black)			Immediately	$ 23.33
5B	67005958		Cover, Top Hinge Right Hand (white)   (Replaces: 12962302W)				$ 21.57
5C	WP67005956		Cover, Top Hinge Right Hand (black)   (Replaces: 12962302B)				$ 22.54
6A	12981401B		Cover, Fill Tube (black)				$ 13.25
