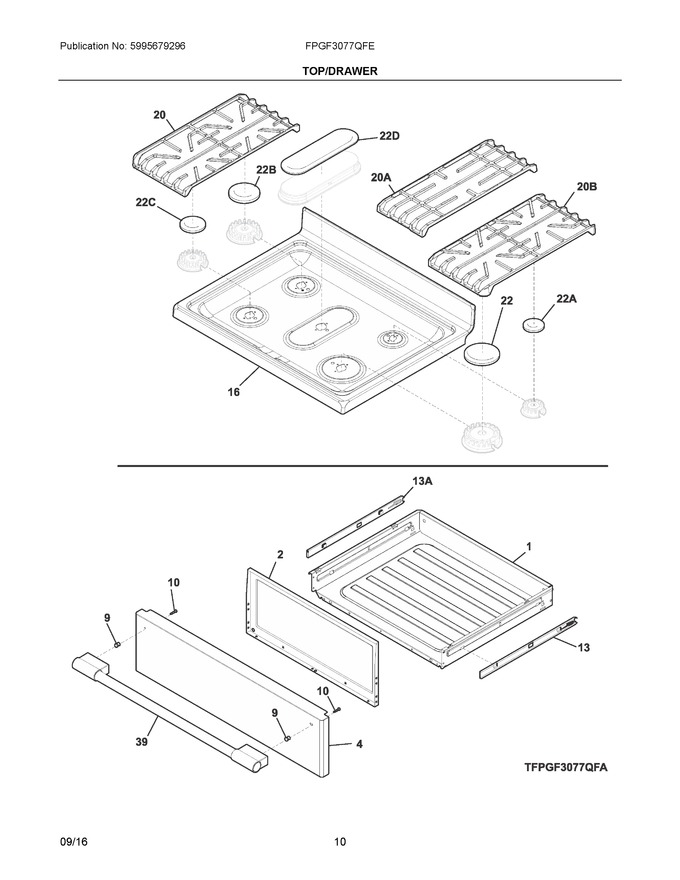

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Utility, Black   (Replaces: 807108404)				$ 139.38
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 29.49
4	5304494412		Panel, Drwaer Front, Stainless				$ 109.48
9	5304494420		Nut, Hour Glass, Handle Mtg.				$ 14.18
10	5304414648		Screw, Handle Mtg.				$ 15.75
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
16	316610006		Main Top, Black				$ 216.56
20	808754701		Grate, Black, Lh				$ 214.99
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
39	5304494423		Handle, Asm			Immediately	$ 349.65
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
20A	808754801		Grate, Black, Center				$ 218.93
20B	808754702		Grate, Black, Rh				$ 214.99
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	316136900		Cleaner, Stainless Steel				$ 35.49
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
