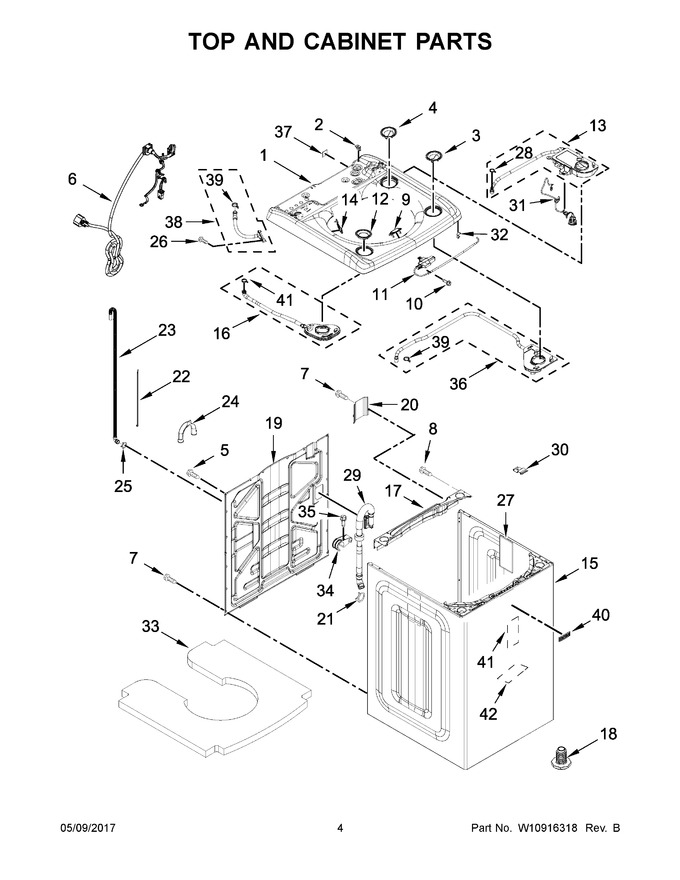

03 - Top And Cabinet Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10747123 | Top (chrome Shadow) |
|
- | |||||
| 2 | W10711050 | Grommet, Screw |
|
- | |||||
| 3 | W10749759 | Bezel, Fabric Softener Dispenser (grey) |
|
- | |||||
| 4 | W10749769 | Bezel, Bleach Dispenser (grey) |
|
$ 29.18 | |||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 6 | W10734500 | Power Cord |
|
$ 124.26 | |||||
| 7 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 8 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 9 | W10747826 | Bezel, Lid Lock (grey) |
|
$ 23.75 | |||||
| 10 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 11 | W11188327 | Assembly, Lid Lock (Replaces: W10727693) |
|
Immediately | $ 252.75 | ||||
| 12 | W10749749 | Bezel, Detergent Dispenser (grey) |
|
$ 29.13 | |||||
| 13 | W10749756 | Dispenser Assembly, Bleach (grey) |
|
$ 109.34 | |||||
| 14 | W10522542 | Bezel, Fresh Fill (chrome) |
|
- | |||||
| 15 | W10763699 | Cabinet (chrome Shadow) |
|
$ 452.56 | |||||
| 16 | W11290602 | Dispenser Assembly, Detergent (grey) (Replaces: W10749750) |
|
$ 101.48 | |||||
| 17 | W10463933 | Channel, Front Rear |
|
- | |||||
| 18 | W11204543 | Foot Assembly, Leveling (Replaces: W10715265) |
|
$ 12.13 | |||||
| 19 | W10464765 | Panel, Rear |
|
- | |||||
| 20 | W10676061 | Cover, Harness |
|
$ 35.02 | |||||
| 21 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 22 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 23 | W11244231 | Hose, Outer Drain (Replaces: W10769870) |
|
Immediately | $ 32.07 | ||||
| 24 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 25 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 26 | W11700520 | Screw (Replaces: 3400061) |
|
$ 13.60 | |||||
| 27 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.98 | ||||
| 28 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.40 | ||||
| 29 | W11246418 | Hose, Internal Drain (Replaces: W10786890) |
|
$ 55.02 | |||||
| 30 | WPW10248088 | Lock, Top (Replaces: W10248088) |
|
$ 17.93 | |||||
| 31 | W11553311 | Light Assembly, Basket (Replaces: W10591941) |
|
$ 30.93 | |||||
| 32 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 33 | W10825092 | Absorber, Sound |
|
$ 89.75 | |||||
| 34 | W10652932 | Clip, Hose |
|
$ 40.94 | |||||
| 35 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 36 | W11678129 | Dispenser Assembly, Fabric Softener (grey) (Replaces: W10749753) |
|
$ 119.42 | |||||
| 37 | W10161707 | Top, Foam Seal |
|
- | |||||
| 38 | W10749373 | Nozzle Assembly, Fresh Fill |
|
- | |||||
| 39 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.40 | ||||
| 40 | WPW10612926 | Badge (chrome) (Replaces: W10612926) |
|
Immediately | $ 37.71 | ||||
| 41 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 22.27 | ||||
| 42 | W11096159 | Damper, Sound (Replaces: W10414221) |
|
$ 27.36 |
