SELECT A DIAGRAM

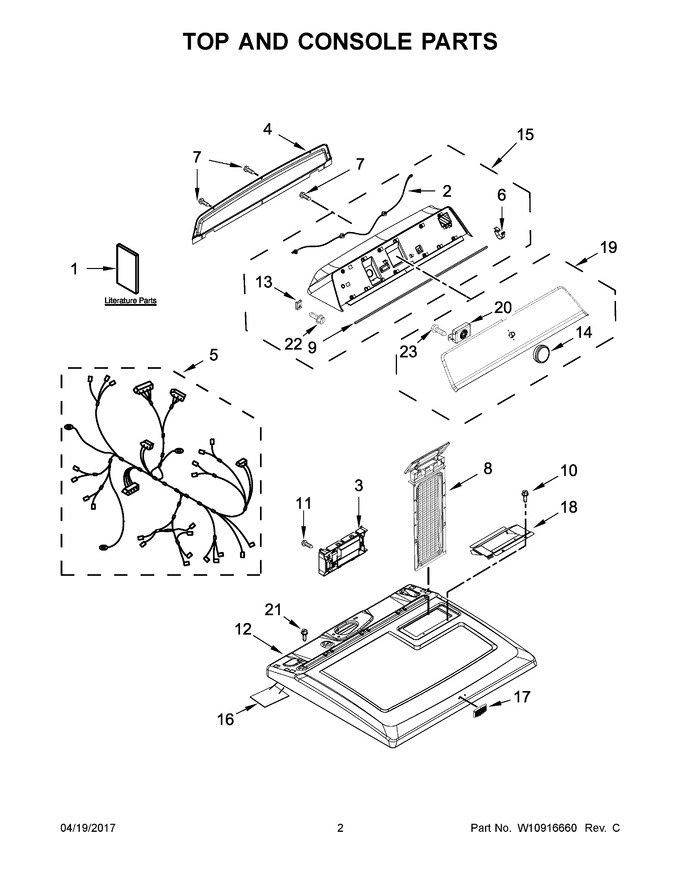

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10911453		Use And Care Guide		Appelez-nous	-
2	W11096548		Harness, User Interface   (Replaces: W10787940)				$ 171.61
3	W10831163		Control, Electronic   (Replaces: W10793303)				$ 394.63
4	W10775189		Panel, Rear				$ 371.55
5	W10777422		Harness, Wiring		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
8	W11778254		Lint Screen (white)   (Replaces: W10508973)			Immediately	$ 52.03
9	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.82
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
14	W10853910		Assembly, Timer Knob (chrome)   (Replaces: W10727011)				$ 51.37
15	W11026442		Assembly, Console (white)   (Replaces: W10622102)			Immediately	$ 585.82
16	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 29.48
17	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
18	W10662472		Collar, Lint Chute				$ 74.16
19	W11042482		Assembly, Fascia   (Replaces: W10872844)			Immediately	$ 378.33
20	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 77.08
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
22	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00
23	WP9740849		Screw   (Replaces: 9740849)				$ 6.95
1A	W10680138		Tech Sheet		Appelez-nous	-
1B	W10848818		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
