View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

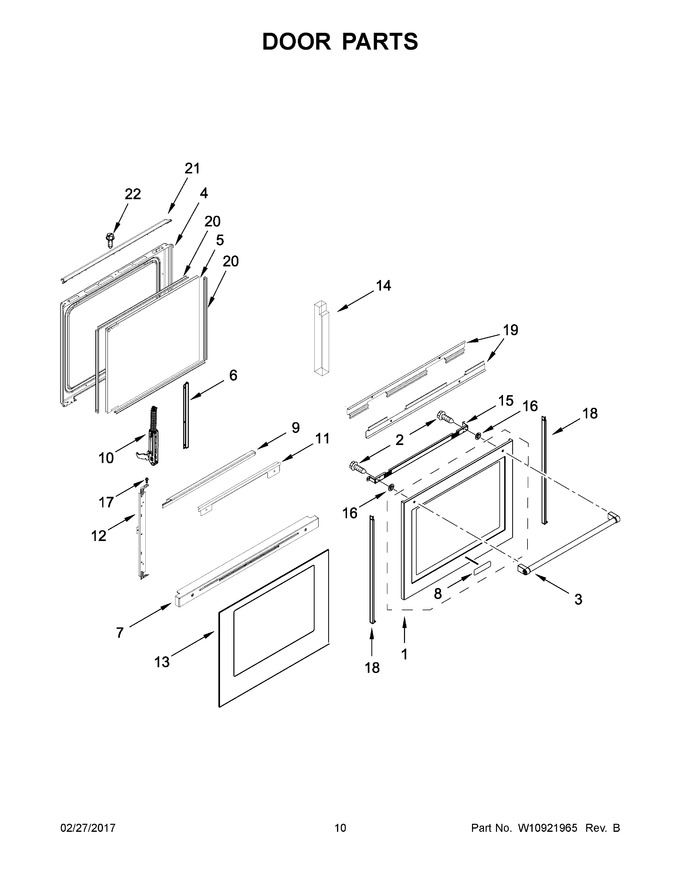

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10906445 | Assembly, Outer Door (stainless) (Replaces: W10830225) |
|
$ 513.29 | |||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 3 | W11104399 | Assembly, Door Handle (stainless) (Replaces: W10551000) |
|
$ 237.48 | |||||
| 4 | WPW10297318 | Liner, Door (black & White Models) (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (black & White Models) (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | W10334031 | Bracket, Full (black) |
|
$ 77.86 | |||||
| 7 | W10294855 | Trim, Vent (black) |
|
Immediately | $ 119.88 | ||||
| 8 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (black & White Models) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 11 | W10334004 | Trim, Door (black) |
|
$ 233.76 | |||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 13 | W10804365 | Glass, Outer Door (black) (Replaces: W10665481) |
|
$ 319.50 | |||||
| 14 | W11688565 | Insulation, Door (black & White Models) (Replaces: W10772958) |
|
$ 27.02 | |||||
| 15 | W10541911 | Bracket, Glass Upper Handle (stainless Models) |
|
Immediately | $ 39.92 | ||||
| 16 | W11676355 | Washer, Door (stainless Models) (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 17 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 18 | W11744483 | Rail, Vertical Support (stainless Models) (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 19 | W10813140 | Rail, Horizontal Support (stainless Models) |
|
Immediately | $ 177.21 | ||||
| 20 | W11673273 | Spacer, Glass (stainless Models) (Replaces: W10813142) |
|
Immediately | $ 31.04 | ||||
| 21 | W10675397 | Liner, Door Scoop (stainless Models) |
|
$ 141.74 | |||||
| 22 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10A | W11162113 | Hinge, Door (active) (stainless Models) (Replaces: W10885519) |
|
Immediately | $ 123.92 | ||||
| 11A | W10334003 | Trim, Door (white) |
|
Immediately | $ 84.58 | ||||
| 13A | WPW10495962 | Glass, Outer Door (white) (Replaces: W10495962) |
|
$ 402.77 | |||||
| 14A | W10634261 | Insulation, Door (stainless Models) |
|
- | |||||
| 14B | W11025151 | Insulation, Door (stainless Models) (Replaces: W10766562) |
|
$ 220.55 | |||||
| 4A | W10902192 | Liner, Door (stainless Models) (Replaces: W10826568) |
|
$ 335.04 | |||||
| 5A | W11339500 | Glass, Inner (stainless Models) (Replaces: W10813616) |
|
$ 171.17 | |||||
| 6A | WPW10333990 | Bracket, Full (white) (Replaces: W10333990) |
|
Immediately | $ 51.90 | ||||
| 7A | WPW10335331 | Trim, Vent (white) (Replaces: W10335331) |
|
Immediately | $ 125.35 |
