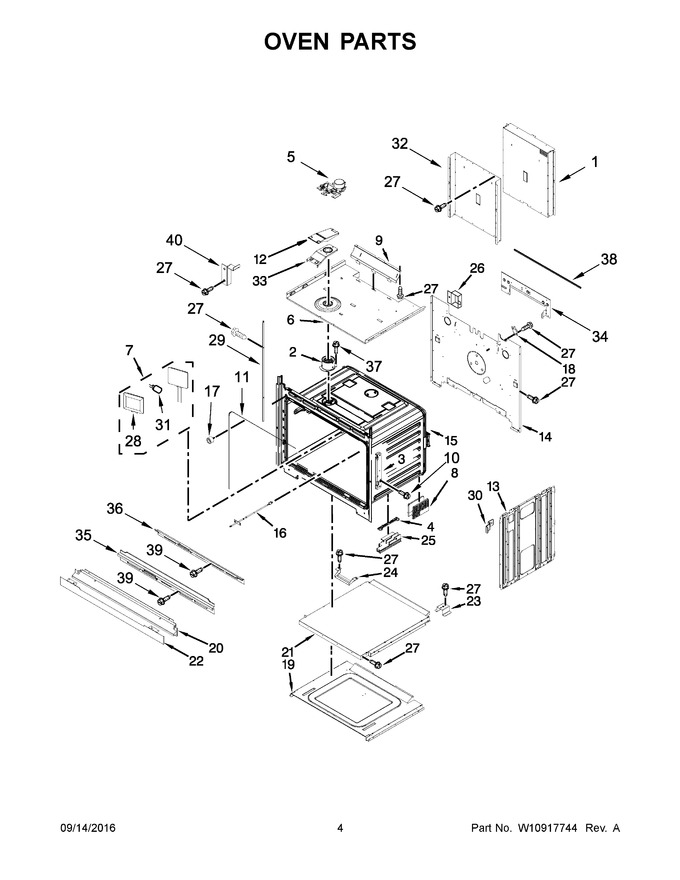

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318196		Duct, Chassis Back (upper)				$ 218.89
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 57.49
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 17.25
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10813744		Chassis, Top		Appelez-nous	-
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 96.33
8	W10821321		Foot, Base   (Replaces: W10618101)				$ 33.51
9	W10904163		Deflector, Blower   (Replaces: W10641572)			Immediately	$ 169.79
10	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 105.26
12	W10616810		Cover, Vent Exhaust				$ 69.95
13	W10318190		Side, Chassis (right)				$ 117.20
14	W10813734		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W10282901		Base, Chassis				$ 177.43
20	WPW10351280		Assembly, Bottom Vent (stainless)   (Replaces: W10351280)				$ 264.15
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
22	WPW10327378		Trim, Bottom Vent (stainless)   (Replaces: W10327378)			Immediately	$ 224.77
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	W10848812		Foot, Front (left)   (Replaces: W10618103)				$ 32.71
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
29	W10536161		Cover, Side Trim (left)   (Replaces: W10327369)				$ 50.62
30	W10347649		Spacers, Front				$ 15.02
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
32	W10542857		Duct, Chassis Back (lower)				$ 105.99
33	W10616809		Base, Vent Exhaust				$ 32.24
34	W10588736		Bracket, U-shape		Appelez-nous	-
35	W10283041		Vent, Center 27			Immediately	$ 155.83
36	W10283037		Vent, Top 27			Immediately	$ 148.31
37	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
38	W10728475		Gasket, Rubber				$ 38.13
39	W11193480		Screw   (Replaces: W10607120)				$ 14.72
40	W10863234		Bracket, Side Cover (left)		Appelez-nous	-
29A	W10536161		Cover, Side Trim (right)   (Replaces: W10327368)				$ 50.62
40A	W10863233		Bracket, Side Cover (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-
NI	W11688333		Insulation, Back   (Replaces: W10282945)		Appelez-nous	-
