01 - Cover Sheet

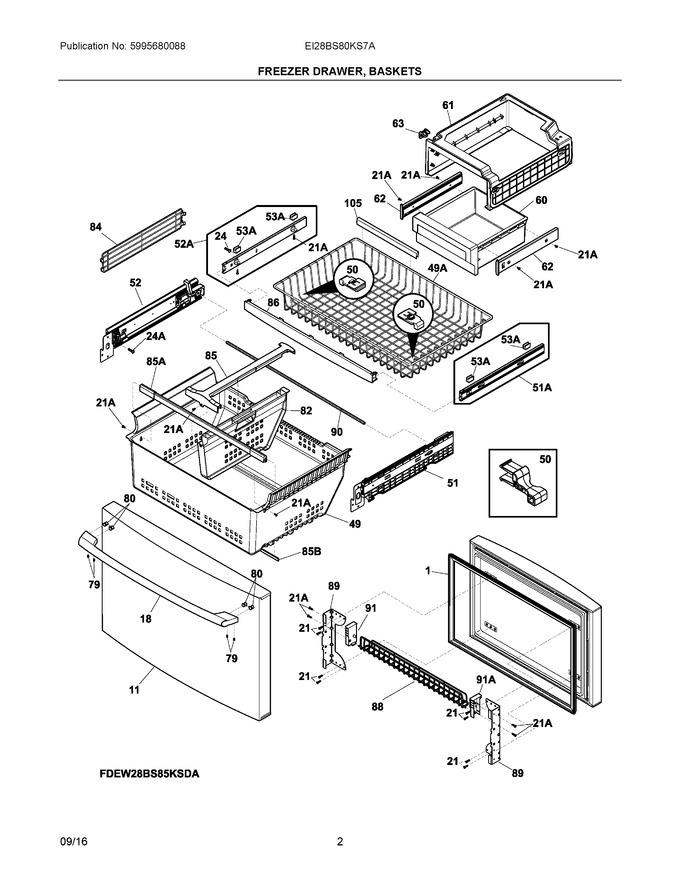

02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket, Freezer Drawer, Grey   (Replaces: 5304501270)			Immediately	$ 95.87
11	241987922		Drawer, Stainless, Freezer				$ 713.58
18	241881310		Handle-frzr Drawer, Stainless				$ 301.61
21	241690602		Screw, Quadrex, #10-16 Hilo				$ 11.81
24	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
49	5303918736		Basket-frzr, Plastic, Lower   (Replaces: 242130701)				$ 246.91
50	242219502		Clip-basket, Pull Side				$ 21.06
51	5303918727		Slide Assembly, Lower Basket, Rh, W/pinion				$ 261.45
52	5303918726		Slide Assembly, Lower Basket, Lh, W/pinion				$ 262.24
60	242131601		Bin-soft Freeze				$ 161.54
61	242177601		Housing W/gasket, Soft Freeze Bin, Freezer Drawer				$ 98.91
62	242154102		Slide Assembly, Soft Freeze Bin, Freezer Drawer				$ 110.43
63	242159501		Clip-soft Freeze Bin, Freezer Drawer				$ 17.73
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
82	5304503705		Divider, Basket   (Replaces: 242131301)				$ 131.51
84	241780904		Divider, Basket, Upper				$ 79.21
85	242130901		Hanger, Basket, Lower				$ 101.96
86	5304507340		Trim, Drawer, Stabilizer   (Replaces: 241807605)			Immediately	$ 50.61
88	241824008		Rack-non-tilt Out, Door				$ 137.35
89	5304509676		Bracket, Freezer Drawer, (2)   (Replaces: 5304501269)				$ 85.95
90	242136901		Bar-timing				$ 35.45
91	241824102		Cap-door Rack				$ 19.38
105	242116801		Trim-basket				$ 19.69
21A	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
24A	240383412		Screw, Truss Hd Quad, #10-16 X .750, Zinc				$ 12.71
49A	241780810		Basket-frzr, Upper				$ 238.67
50A	5304501271		Clip, Freezer Basket			Immediately	$ 17.33
51A	241894229		Slide Assembly, Basket, Rh, Freezer Drawer				$ 155.14
52A	241894230		Slide Assembly, Basket, Lh, Freezer Drawer				$ 162.23
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 14.32
85A	242139301		Support-beam, Divider, Lower Basket				$ 81.90
85B	241872203		Support-beam				$ 59.83
91A	241824101		Cap, Door Rack, White				$ 19.38
NI	242146401		Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)			Immediately	$ 15.86
NI	5303918697		Alignment Kit, Freezer Door, W/instructions		Appelez-nous	-
NI	242015001		Screw, 8-18 X 1/2			Immediately	$ 18.11
NIA	242139201		Spring-compression, Divider, Lower Basket				$ 21.91
NIA	241601002		Wrench, Allen		Appelez-nous	-
NIA	242039702		Screw, Shoulder, #10-16, (2)				$ 4.73
NIA	242011101		Pin-lock				$ 16.85
NIA	241953908		Screw, Quad Hilo, #8-18				$ 4.73
NIAA	242039701		Screw, Basket Slides				$ 14.96

    View Diagram in Separate Window       Print Part List
