01 - Cover Sheet

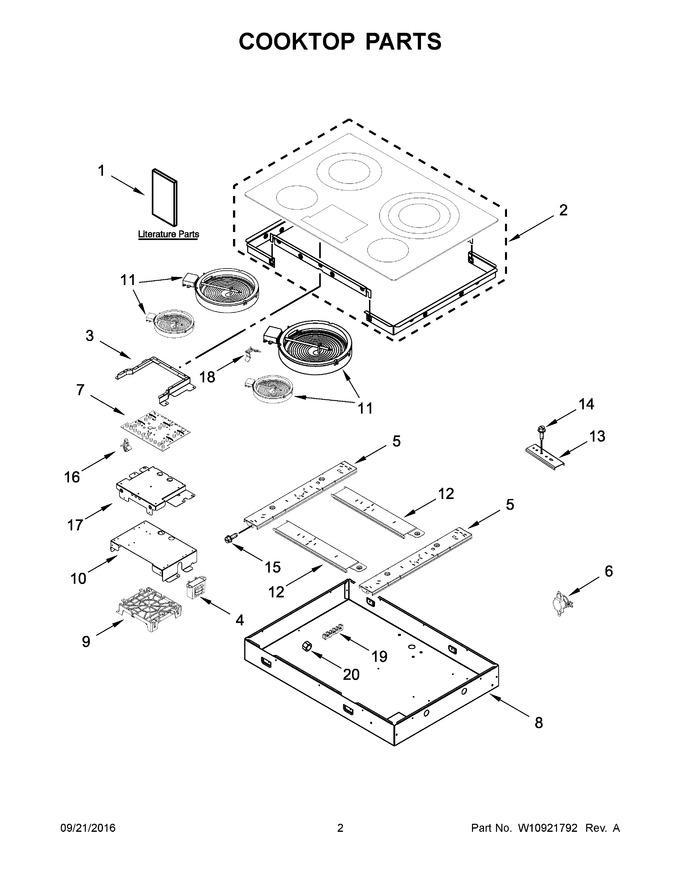

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10722846 | Instructions, Installation |
|
- | |||||
| 2 | W10749638 | Cooktop (black) (Replaces: W10695009) |
|
$ 699.39 | |||||
| 3 | W10311898 | Shield, Outer |
|
- | |||||
| 4 | WP9760588 | Transformer, Light (Replaces: 9760588) |
|
$ 276.58 | |||||
| 5 | W10311788 | Rail, Vertical |
|
- | |||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 7 | WPW10325426 | Interface, User (Replaces: W10325426) |
|
$ 411.15 | |||||
| 8 | W10421510 | Box, Burner |
|
- | |||||
| 9 | W11028268 | Manager, Appliance (Replaces: W10905136) |
|
$ 497.72 | |||||
| 10 | W10311795 | Plate, Switch |
|
- | |||||
| 11 | W11171119 | Element (1200w) (left Front & Right Front) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 12 | W10311792 | Rail, Horizontal |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | W10225914 | Support, Locking |
|
- | |||||
| 17 | W10311794 | Plate, Support |
|
$ 174.24 | |||||
| 18 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 19 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 20 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 11A | WPW10275049 | Element (2500/1200w) (left Rear) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 11B | W10823720 | Element (3000w Triple) (right Rear) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 1A | W10373101 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W10675927 | Guide, Use & Care |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10906260 | Sheet, Tech (english) |
|
- | |||||
| 1F | W10906264 | Sheet, Tech (french) |
|
- | |||||
| 2A | W10749640 | Cooktop (white) (Replaces: W10695017) |
|
$ 850.87 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 16.79 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 117.41 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11190496 | Harness, Cooktop (Replaces: W10905143) |
|
- | |||||
| NI | W10291385 | Conduit |
|
$ 127.00 | |||||
| NI | FE02313 | Bushing |
|
- | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | W10316659 | Gasket |
|
$ 108.21 |
