Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor   (Replaces: W10844384) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10852733) In-Stock Immediately $ 42.25

6 W10901498 Panel, Front (includes 4, 10, 11 & 16) (black)   (Replaces: W10872620) Special Order $ 417.86

7 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

8 W10831329 Insulation, Four Layer   (Replaces: W10526105) In-Stock Immediately $ 43.30

9 W10708004 Handle Assembly (stainless)   (Replaces: W10786161) In-Stock Immediately $ 141.35

10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10901145 Light Pipe   (Replaces: W10854504) Special Order $ 77.23

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 W10910629 U-nut   (Replaces: W10853886) Special Order $ 8.64

14 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W10909682 Nameplate (grey)   (Replaces: W10518672) In-Stock Immediately $ 76.20

17 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

18 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

12A WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

1A W10746816 Energy Guide Appelez-nous -
1B W10751710 Use & Care Guide Appelez-nous -
1C W10750900 Tech Sheet, English Appelez-nous -
1D W10754472 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

5A W10852732 Access Panel (white) Appelez-nous -
6A W10872621 Panel, Front (includes 4, 10, 11 & 16) (white) Appelez-nous -
6B W10900374 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10872619) In-Stock Immediately $ 419.85


    View Diagram in Separate Window     Print Icon   Print Part List

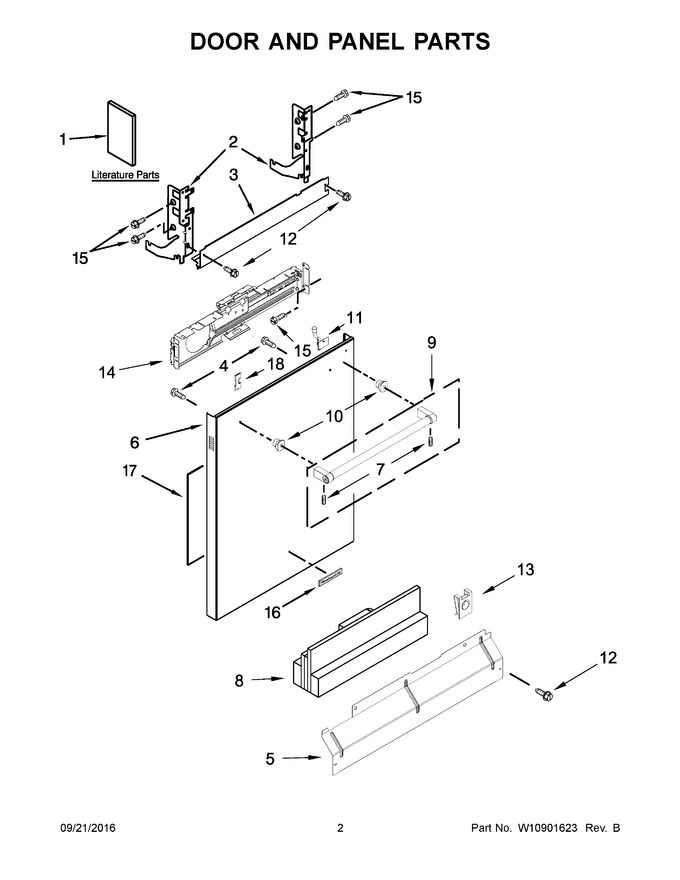

Diagram for KDTE254ESS2
