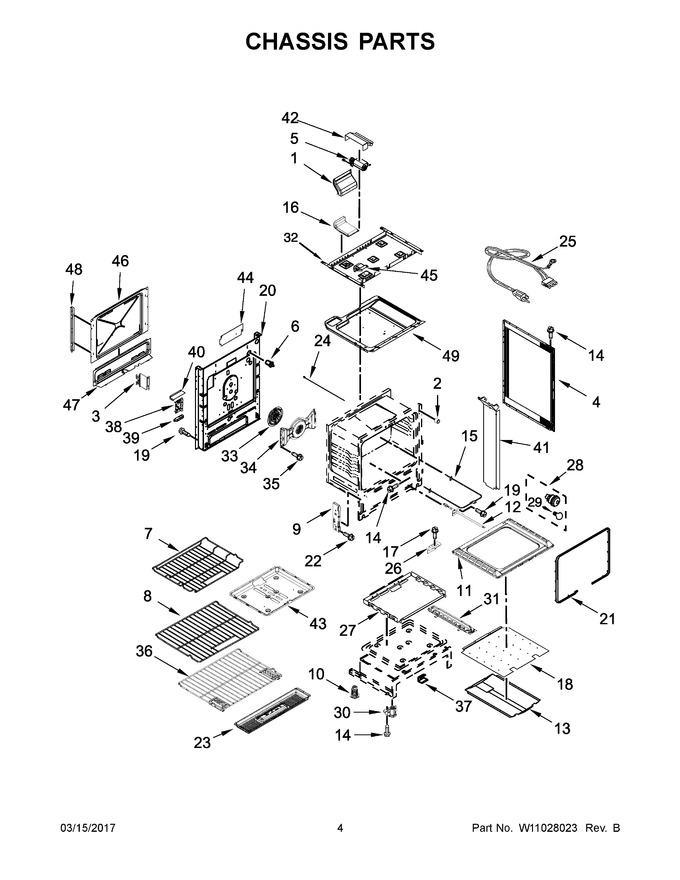

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10614920		Assembly, Flue				$ 174.87
2	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
3	W10273002		Bracket, Oven Support				$ 76.34
4	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
5	W11107275		Assembly, Cooling Fan   (Replaces: W10780482)			Immediately	$ 162.31
6	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 144.44
7	W11256463		Rack, Maximum Capacity   (Replaces: W10554006)			Immediately	$ 132.50
8	W11699908		Rack, Heavy Duty   (Replaces: W10554005)				$ 116.49
9	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
11	WPW10211368		Bottom, Oven   (Replaces: W10211368)			Immediately	$ 337.76
12	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
13	W11775243		Baffle, Bake Burner   (Replaces: 3601P356-45)				$ 91.47
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
15	W10552502		Element, Broil Assist			Immediately	$ 117.66
16	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 370.35
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	W10323077		Diffuser, Flame				$ 281.78
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	W10289166		Back, Main		Appelez-nous	-
21	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
22	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
23	W11403917		Kit, Reservoir (steam Rack)   (Replaces: W10686408)				$ 177.63
24	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 66.87
25	W10889764		Cord, Power				$ 110.55
26	W10035900		Support, Oven Bottom				$ 14.36
27	W10541959		Shield, Bake			Immediately	$ 168.98
28	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 87.01
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
30	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 32.59
31	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 62.66
32	W10558276		Box, Burner Gas				$ 224.36
33	W11441001		Assembly, Convection   (Replaces: W10874477)			Immediately	$ 136.09
34	W11676564		Baffle, Full Convection   (Replaces: W10346153)				$ 234.02
35	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
36	W11673270		Rack, Steam   (Replaces: W10554007)			Immediately	$ 77.03
37	W10137382		Clip, Panel			Immediately	$ 48.42
38	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 284.59
39	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
40	W10655451		Guard, Splash				$ 76.02
41	W10162254		Duct, Cooling				$ 134.45
42	W10162255		Duct, Cover				$ 29.17
43	W11379356		Pan, Bake   (Replaces: W10273204)				$ 80.02
44	W10813366		Shield, Wire				$ 53.24
45	W10162257		Duct, Cooktop				$ 28.76
46	W11379354		Cover, Back   (Replaces: W10289172)			Immediately	$ 77.79
47	W10162249		Cover, Wire				$ 109.24
48	W10162241		Channel, Rear				$ 37.56
49	W10289168		Box, Burner Si				$ 204.90
31A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 62.66
4A	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 148.71
NI	4820F015-59		Insulation, Strap				$ 9.79
NI	W11688567		Insulation, Wrap   (Replaces: W10289173)				$ 128.01
NI	W11688363		Insulation, Back   (Replaces: W10162240)				$ 122.19
NI	W10916510		Insulation, Burner Box		Appelez-nous	-
