SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts

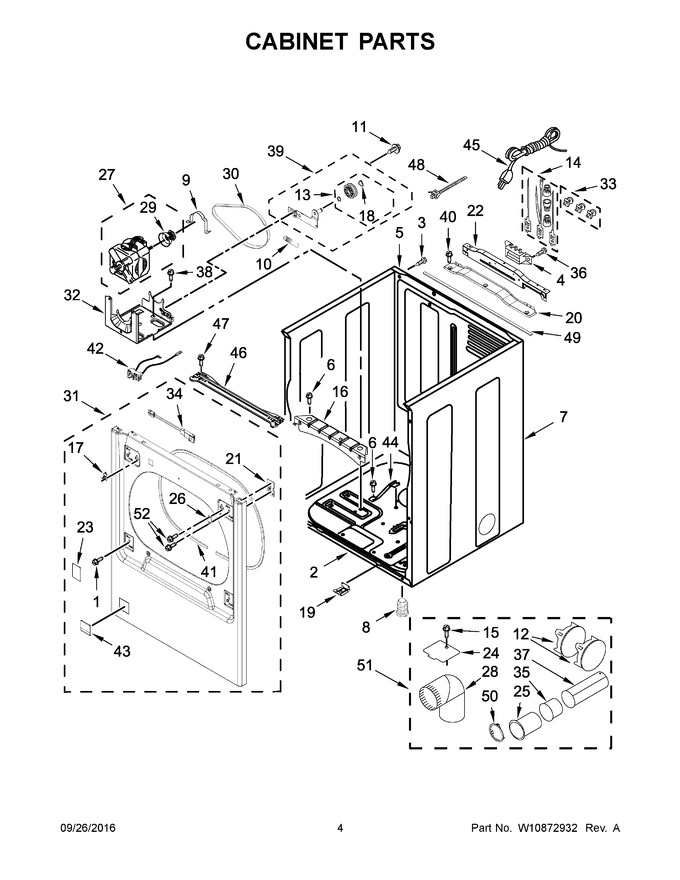

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw   (Replaces: W10773242)				$ 8.20
2	W10613683		Base, Cabinet				$ 201.57
3	W10636208		Screw		Appelez-nous	-
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10824896		Panel, Rear				$ 311.31
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
7	W10633648		Panel, Side (right) (white (without Cutout))				$ 287.57
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (white)   (Replaces: W10404617)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	W11568617		Screw   (Replaces: W10567155)				$ 14.72
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	W11163826		Strike   (Replaces: W10778071)				$ 26.61
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	W10651902		Panel - Rear, Dryer Bulkhead (white)   (Replaces: W10672088)		Appelez-nous	-
21	W10596959		Bracket, Hinge				$ 20.00
22	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
23	W10590953		Plug, Hinge (white)		Appelez-nous	-
24	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
25	W10587890		Pipe, Exhaust (medium)		Appelez-nous	-
26	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
27	W11105178		Assembly, Motor   (Replaces: W10806759)			Immediately	$ 335.25
28	WPW10416072		Elbow   (Replaces: W10416072)				$ 28.16
29	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 86.58
30	W10849499		Belt, Drive   (Replaces: W10610882)			Immediately	$ 57.86
31	W10875869		Panel, Front (white)   (Replaces: W10861063)				$ 320.59
32	W10578053		Bracket, Motor Mounting				$ 92.22
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 74.25
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
36	W10704731		Screw		Appelez-nous	-
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
40	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W11662087		Switch, Broken Belt   (Replaces: W10774832)				$ 54.97
43	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
44	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
45	W11628810		Cord, Power   (Replaces: W10706056)				$ 101.90
46	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
47	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
48	6-920119		Screw		Appelez-nous	-
49	W10316616		Seal, Foam				$ 27.79
50	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 85.70
51	W10704365		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent				$ 134.80
20A	W10651902		Panel - Rear, Dryer Bulkhead (chrome Shadow)   (Replaces: W10672089)		Appelez-nous	-
20B	W10573722		Panel - Rear, Dryer Bulkhead (red)		Appelez-nous	-
23A	W10596965		Plug, Hinge (chrome Shadow)		Appelez-nous	-
31A	W10875891		Panel, Front (chrome Shadow)   (Replaces: W10861062)				$ 356.12
31B	W10888876		Panel, Front (cherry Metallic)   (Replaces: W10861061)		Appelez-nous	-
43A	W10391496		Plug, Front Panel (chrome Shadow)		Appelez-nous	-
43B	W10337788		Plug, Front Panel (cherry Metallic)		Appelez-nous	-
7A	W10681830		Panel, Side (right) (chrome Shadow (without Cutout))				$ 350.56
7B	W10573723		Panel, Side (right) (red (without Cutout))		Appelez-nous	-
7C	W10645768		Panel, Side (left) (white (with Cutout))		Appelez-nous	-
7D	W10681831		Panel, Side (left) (chrome Shadow (with Cutout))		Appelez-nous	-
7E	W10573724		Panel, Side (left) (red)		Appelez-nous	-
NI	49621		Foot, Optional Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
