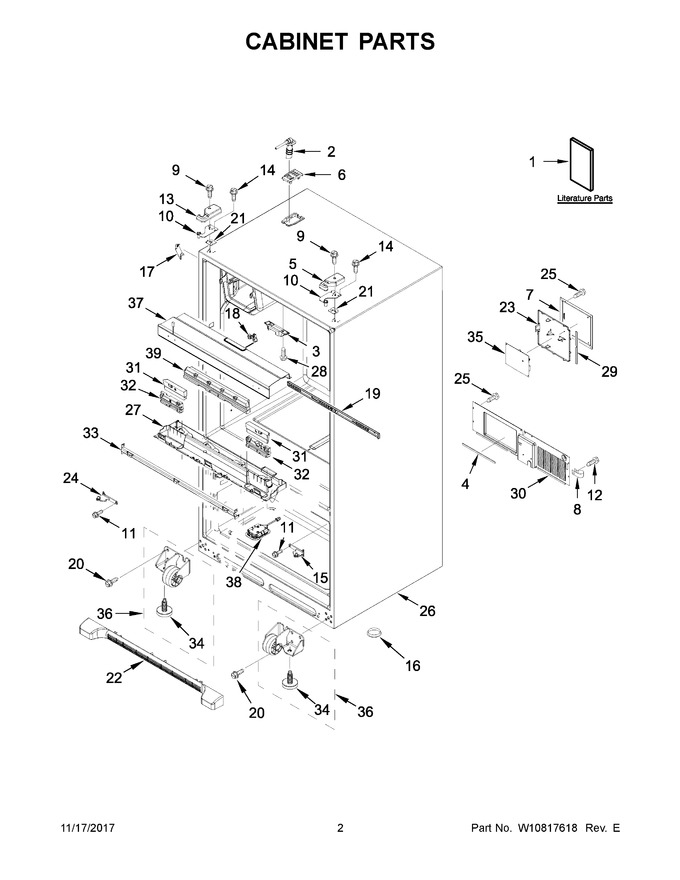

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10873263 | Tech Sheet |
|
- | |||||
| 2 | W11415785 | Tube, Water (Replaces: 12961401) |
|
Immediately | $ 62.39 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | 67005958 | Cover, Top Hinge Right Hand (white) (Replaces: 12962302W) |
|
$ 20.54 | |||||
| 6 | 12981401W | Cover, Fill Tube (white) |
|
$ 12.62 | |||||
| 7 | 12961602 | Cover, Control Box |
|
$ 110.66 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 11 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 | ||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10337634 | Cover, Top Hinge Left Hand (white) (Replaces: W10337634) |
|
Immediately | $ 22.42 | ||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918117 | Hinge, Center Right Hand (white) (Replaces: W10740144) |
|
$ 22.66 | |||||
| 16 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | W10827867 | Knob, Vent Slide |
|
- | |||||
| 19 | W10367522 | Slide, Mullion Vent |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 94.79 | |||||
| 22 | WPW10534154 | Grille, Toe (white) (Replaces: W10534154) |
|
$ 146.34 | |||||
| 23 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 81.10 | |||||
| 24 | W10918115 | Hinge, Center Left Hand (white) (Replaces: W10740148) |
|
$ 21.80 | |||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 13.59 | |||||
| 26 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 27 | W10877249 | Housing, Module (Replaces: W10820998) |
|
- | |||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 29 | W10914798 | Gasket, Control Box |
|
- | |||||
| 30 | WPW10270394 | Cover, Unit (Replaces: W10270394) |
|
$ 198.79 | |||||
| 31 | W11697528 | Wedge, Spacer (left Hand & Right Hand) (Replaces: W10316403) |
|
- | |||||
| 32 | W10316401 | Wedge, Spacer (left Hand & Right Hand) |
|
- | |||||
| 33 | W10492234 | Brace, Mullion |
|
- | |||||
| 34 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 35 | W11043763 | Control, Electronic (Replaces: W10867574) |
|
Immediately | $ 439.92 | ||||
| 36 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 37 | W11032129 | Assembly, Secondary Mullion (white) (Replaces: W10902088) |
|
- | |||||
| 38 | W11683243 | Assembly, Led Light Module (Replaces: W10843353) |
|
Immediately | $ 269.91 | ||||
| 39 | W10311721 | Mullion, Secondary |
|
- | |||||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 13A | W10337647 | Cover, Top Hinge Left Hand (black) (Replaces: 12962301B) |
|
Immediately | $ 22.22 | ||||
| 15A | W10918168 | Hinge, Center Right Hand (black) (Replaces: W10740145) |
|
Immediately | $ 74.56 | ||||
| 17A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 1A | W10422734 | Use & Care Guide |
|
- | |||||
| 1B | W11112966 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 95.81 | |||||
| 22A | WPW10534153 | Grille, Toe (black) (Replaces: W10534153) |
|
$ 147.21 | |||||
| 24A | W10918166 | Hinge, Center Left Hand (black) (Replaces: W10740149) |
|
$ 74.58 | |||||
| 36A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 37A | W11032131 | Assembly, Secondary Mullion (black) (Replaces: W10902087) |
|
- | |||||
| 5A | WP67005956 | Cover, Top Hinge Right Hand (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 6A | 12981401B | Cover, Fill Tube (black) |
|
$ 12.62 |
