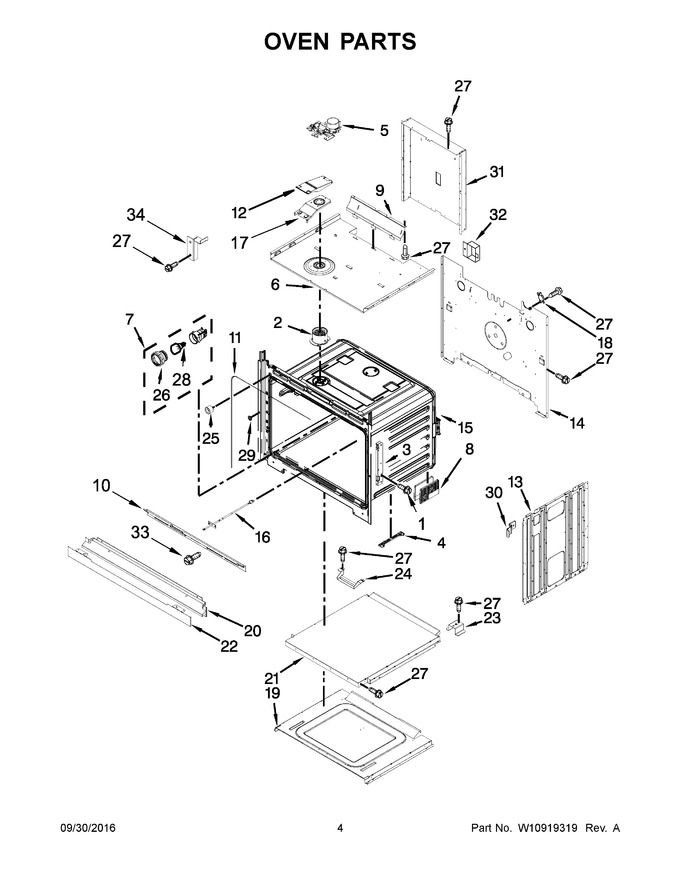

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 57.49
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 17.25
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10813743		Top, Chassis		Appelez-nous	-
7	WPW10734063		Assembly, Light   (Replaces: W10734063)				$ 89.05
8	W10821321		Foot, Base   (Replaces: W10618101)				$ 33.51
9	W10904163		Deflector, Blower   (Replaces: W10641572)			Immediately	$ 169.79
10	W10283036		Vent, Top 30				$ 63.87
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 72.35
12	W10616810		Cover, Vent Exhaust				$ 69.95
13	W10318190		Side, Chassis (right)				$ 117.20
14	W10813703		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	W10616809		Base, Vent Exhaust				$ 32.24
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11238787		Base, Chassis   (Replaces: W10834867)				$ 349.65
20	WPW10327373		Assembly, Bottom Vent (black)   (Replaces: W10327373)				$ 324.01
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
22	WPW10351236		Trim, Bottom Vent (black)   (Replaces: W10351236)			Immediately	$ 151.96
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
26	WPW10412722		Lens, Light   (Replaces: W10412722)			Immediately	$ 19.65
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	WPW10412711		Bulb, Light   (Replaces: W10412711)			Immediately	$ 22.61
29	W10759525		Grommet, Front Frame   (Replaces: W10283016)				$ 8.21
30	W10347649		Spacers, Front				$ 15.02
31	W10318196		Duct, Chassis Back				$ 218.89
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11193480		Screw   (Replaces: W10607120)				$ 14.72
34	W10863234		Bracket, Side Cover (left)		Appelez-nous	-
20A	W10506344		Assembly, Bottom Vent (white)				$ 614.22
22A	W10504026		Trim, Bottom Vent (white)				$ 62.09
34A	W10863233		Bracket, Side Cover (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 124.87
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 124.04
