01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

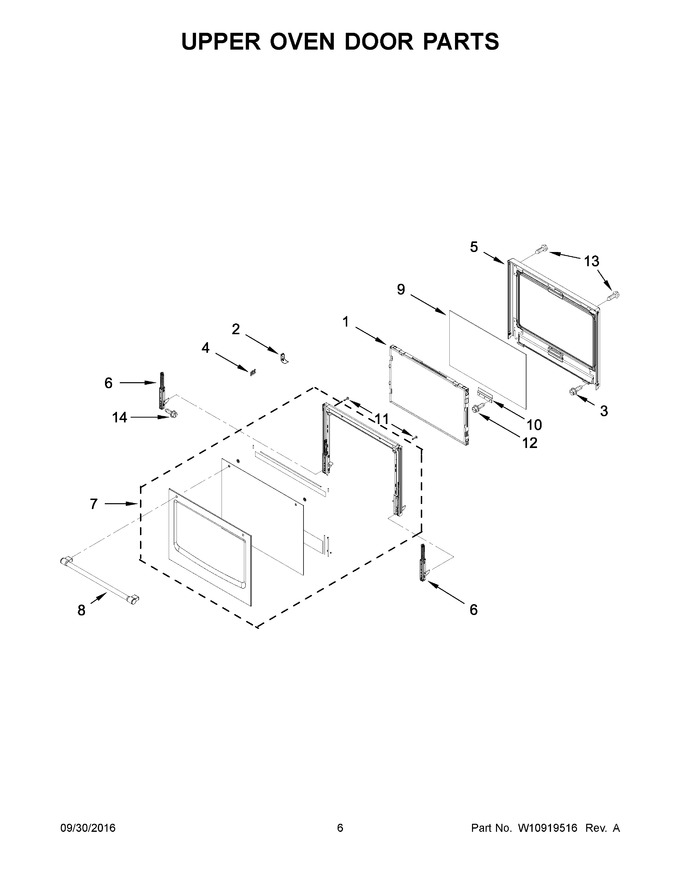

04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 294.07 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.85 | |||||
| 4 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 337.34 | |||||
| 6 | W11578949 | Hinge, Door (Replaces: W10639071) |
|
$ 80.56 | |||||
| 7 | W10920668 | Assembly, Door Glass (black) (Replaces: W10879758) |
|
- | |||||
| 8 | W10920593 | Assembly, Door Handle (black) (Replaces: W10889626) |
|
- | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 208.55 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 14 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 7A | W11028208 | Assembly, Door Glass (white) (Replaces: W10879757) |
|
- | |||||
| 8A | W10920595 | Assembly, Door Handle (white) (Replaces: W10889627) |
|
- |
