01 - Cover Sheet

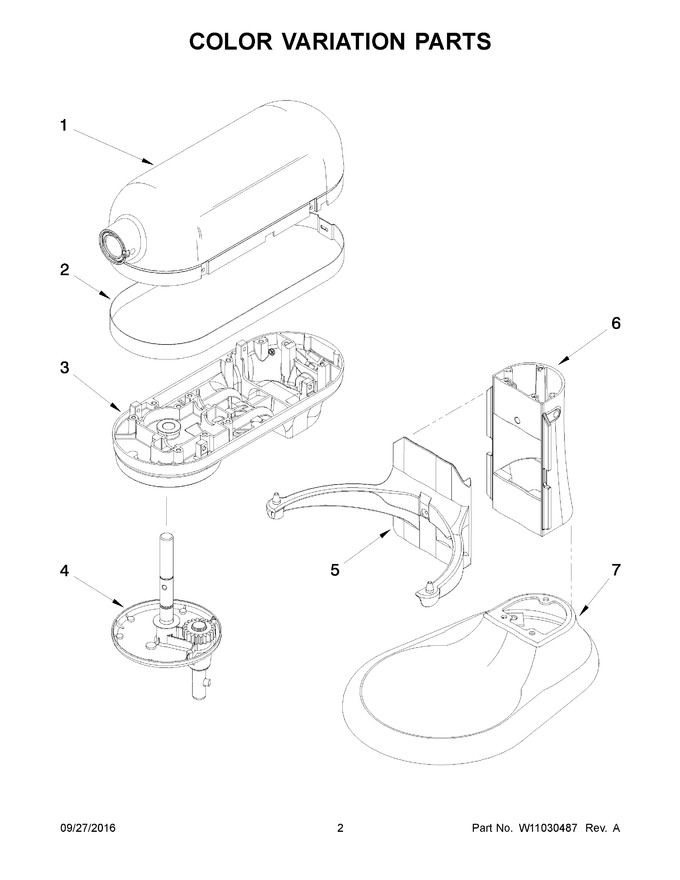

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | W10809493 | Trim Band (black) |
|
$ 40.81 | |||||
| 3 | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 4 | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6 | 9705324 | Column (empire Red) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1B | 9709571 | Motor Housing (silver) |
|
$ 88.20 | |||||
| 3A | 9706311 | Lower Gearcase (onyx Black) |
|
$ 92.72 | |||||
| 3B | 9709578 | Lower Gearcase (silver) |
|
$ 88.30 | |||||
| 4A | WP9708176 | Planetary (onyx Black) (Replaces: 9708176) |
|
Immediately | $ 73.38 | ||||
| 4B | W10327955 | Planetary (silver) (Replaces: 9709575) |
|
$ 86.87 | |||||
| 5A | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5B | W10327840 | Bowl Support And Pins (silver) |
|
$ 74.91 | |||||
| 6A | 9705320 | Column (onyx Black) |
|
- | |||||
| 6B | 9709585 | Column (silver) |
|
$ 73.94 | |||||
| 7A | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7B | 9709588 | Base & Foot Assembly (silver) |
|
$ 80.32 |
