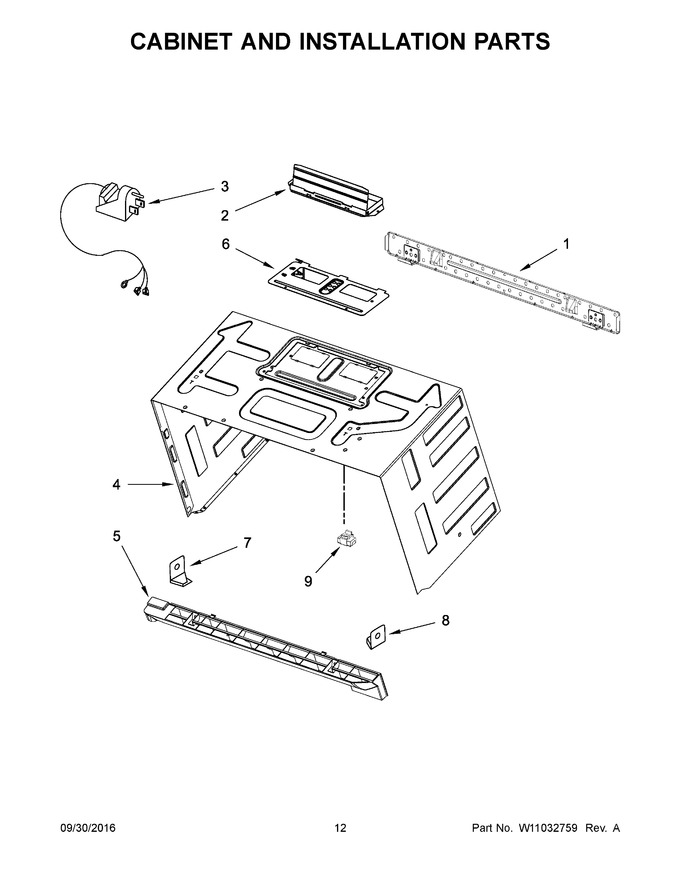

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
4	W10818229		Case, Outer (black)   (Replaces: W10571408)				$ 266.77
5	W10701699		Grille, Vent (black)				$ 81.00
6	W10625423		Cover, Fan Motor				$ 69.87
7	W10830163		Holder, Vent Left Side (black)   (Replaces: W10703285)				$ 14.21
8	W10810989		Holder, Vent Right Side (black)   (Replaces: W10703283)				$ 10.22
9	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
NI	W10821385		Miscellaneous Parts, Hardware, Installation   (Replaces: W10728970)			Immediately	$ 103.72
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 7.55
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10629732		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10539892		Miscellaneous Parts, Harness, Lamp And Turntable Motor		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	W10508746		Miscellaneous Parts, Harness, Smart Pop		Appelez-nous	-
NI	W10508741		Miscellaneous Parts, Wire, Door Control Cable				$ 23.57
