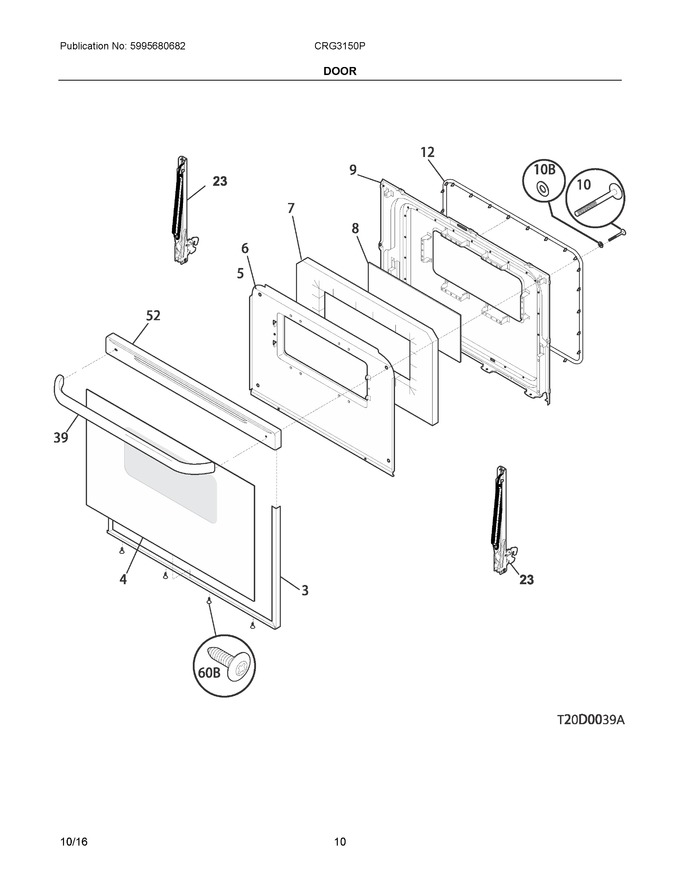

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935398 | Trim Kit-door, 3 Sided, Black, W/tape And Foil |
|
$ 54.86 | |||||
| 4 | 5303935203 | Glass, Door Kit, Black, Outer, W/foil Tape |
|
$ 235.46 | |||||
| 6 | 316222703 | Shield, Oven Door, Wool (Replaces: 316222709) |
|
$ 87.41 | |||||
| 7 | 316236802 | Insulation, Oven Door |
|
$ 41.63 | |||||
| 8 | 5304503233 | Glass, Oven Door, Inner |
|
$ 36.20 | |||||
| 9 | 316230634 | Liner, Oven Door |
|
$ 163.47 | |||||
| 10 | 316001014 | Screw, Waf Hd Sq, 10-24 X 1.6, Handle, (2) |
|
Immediately | $ 52.25 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 169.37 | ||||
| 23 | 316575921 | Hinge, Oven Door, Orange |
|
Immediately | $ 47.19 | ||||
| 39 | 5304529996 | Handle, Oven Door, Black (Replaces: 316456900) |
|
$ 173.45 | |||||
| 52 | 316491201 | Cap, Door Trim, Black |
|
$ 111.04 | |||||
| 10B | 316008401 | Washer, 3/4 Od X 1/4 Id, Steel |
|
$ 12.60 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.95 | |||||
| NI | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18ab X 0.5 |
|
Immediately | $ 14.96 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
