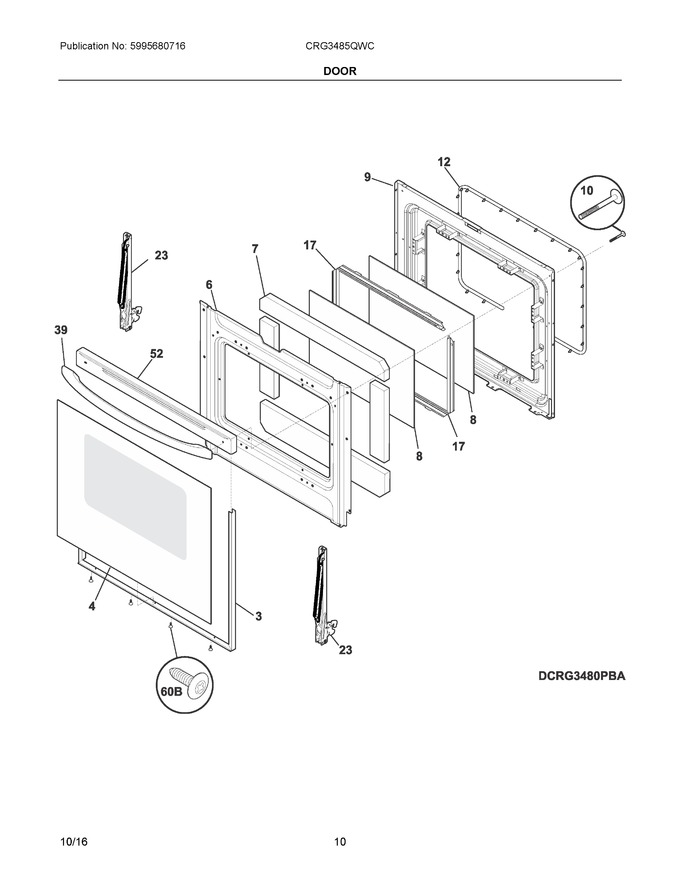

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935379		Trim Kit-door, 3 Sided, White, W/tape		Appelez-nous	-
4	316558905		Glass, Oven Door, White, Outer   (Replaces: 316558900)			Immediately	$ 149.99
6	316402316		Shield, Wool   (Replaces: 316402310)			Immediately	$ 98.58
7	316403900		Insulation, Oven Door			Immediately	$ 80.33
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	316423807		Liner-oven Door				$ 190.44
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 30.55
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 98.60
17	5304504811		Spacer, Glass			Immediately	$ 27.80
23	316575902		Hinge, Oven Door, Red				$ 113.76
39	316270201		Handle, Door, White			Immediately	$ 142.54
52	316575500		Cap, Door Trim, White			Immediately	$ 135.66
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.95
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
