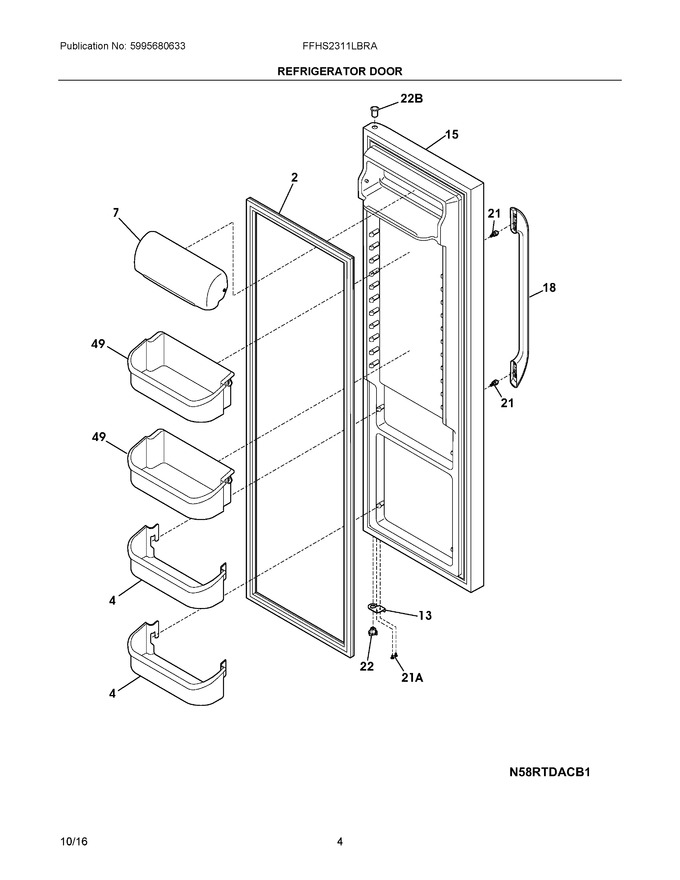

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door, Black, Magnetic   (Replaces: 241786007)			Immediately	$ 105.18
4	240363701		Bin-door, 2-liter			Immediately	$ 66.02
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 89.78
13	240581905		Door Stop, Black, Ref				$ 66.94
15	242038873		Door-refr, Black, Complete Assy		Appelez-nous	-
18	242059102		Handle-door, Black				$ 88.69
21	241695904		Screw				$ 16.01
22	242015302		Bearing-hinge(ref), Black, Closer				$ 11.80
49	240324501		Bin-door, Gallon			Immediately	$ 76.73
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 9.27
22B	240328404		Bearing-hinge, Black, Upper				$ 25.41
