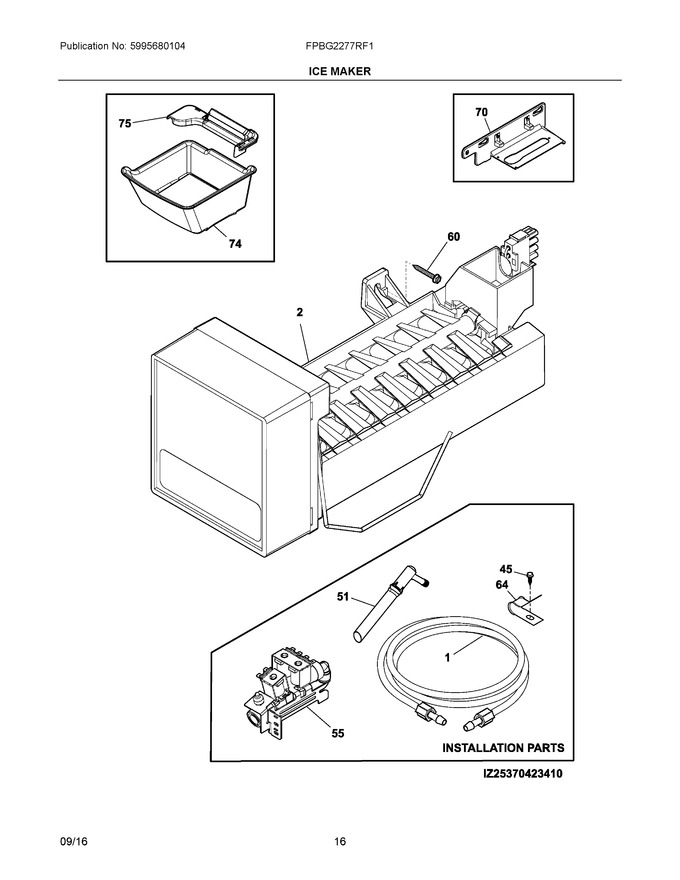

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976804 | Tube-water Inlet, Valve To I.m. |
|
$ 45.89 | |||||
| 2 | 241798233 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798226) |
|
Immediately | $ 287.40 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 51 | 242169406 | Tubing Assembly, Water, 1/4 - 44", Green |
|
- | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 147.46 | ||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 78.75 | |||||
| 74 | 242127901 | Container-ice |
|
$ 219.08 | |||||
| 75 | 242240101 | Shield, Ice Bucket, Wide |
|
$ 85.47 | |||||
| NI | 242039701 | Screw, Basket Slides |
|
$ 14.96 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 21.26 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 |
