SELECT A DIAGRAM

01 - Cover Sheet

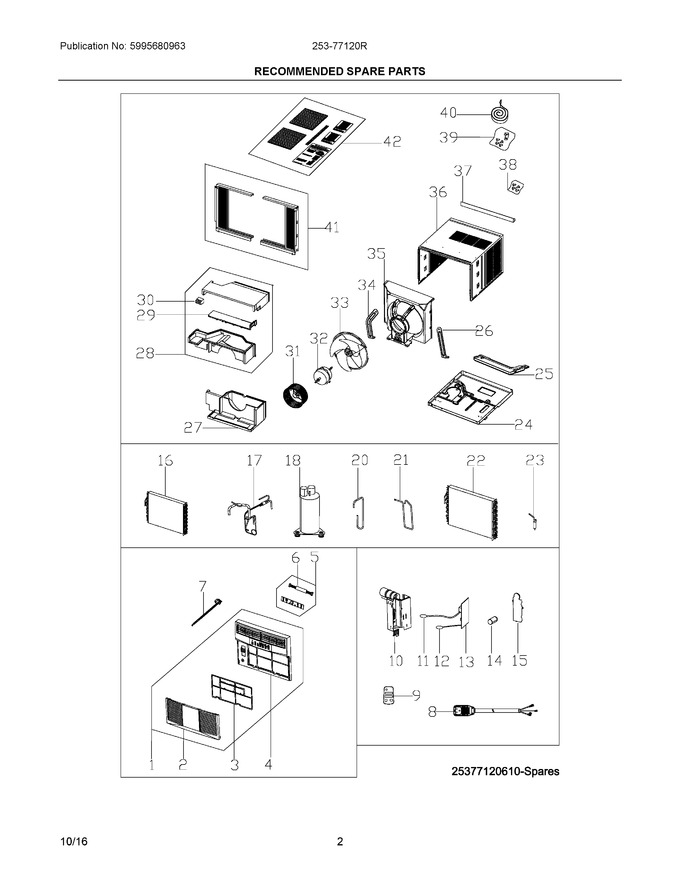

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304504768		Front Assembly, Complete Panel		Appelez-nous	-
2	5304504769		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304504770		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304504771		Panel, Frame, Front, With Louvers		Appelez-nous	-
5	5304476177		Pc Board, Display/input		Appelez-nous	-
6	5304482356		Wire, Connecting		Appelez-nous	-
7	5304504786		Door, Vent Control, With Lever		Appelez-nous	-
8	5304536807		Power Cord, Electric, Lcdi   (Replaces: 5304500884)				$ 140.95
9	5304504692		Remote Control, Transmitter		Appelez-nous	-
10	5304504787		Control Box		Appelez-nous	-
11	5304521225		Sensor, Evap Temp, Thermistor   (Replaces: 5304471275)		Appelez-nous	-
12	5304504724		Sensor, Ambient Temp, Thermistor   (Replaces: 5304487548)				$ 19.85
13	5304504788		Pc Board, Main, Control/power		Appelez-nous	-
14	5304495126		Capacitor		Appelez-nous	-
15	5304504789		Cover, Control Box		Appelez-nous	-
16	5304504790		Evaporator, +capillary Tube		Appelez-nous	-
17	5304504791		Tube, Capillary		Appelez-nous	-
18	5304504175		Compressor, With Overload		Appelez-nous	-
20	5304504792		Tube, Suction		Appelez-nous	-
21	5304504793		Tube, Discharge		Appelez-nous	-
22	5304504794		Condenser		Appelez-nous	-
23	5304476201		Filter-drier				$ 38.98
24	5304504795		Base, Unit Chassis		Appelez-nous	-
25	5304504783		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
26	5304504796		Support, Motor Mount, Right		Appelez-nous	-
27	5304504798		Scroll, Blower Housing, Bottom		Appelez-nous	-
28	5304504799		Scroll, Blower Housing, Top		Appelez-nous	-
29	5304504800		Enclosure, Air Duct		Appelez-nous	-
30	5304504801		Sleeve, Vent Door Assy, Guide		Appelez-nous	-
31	5304485443		Blower Wheel, Centrifugal Fan		Appelez-nous	-
32	5304504169		Motor, Fan		Appelez-nous	-
33	5304504802		Fan Blade, Propeller, Axial		Appelez-nous	-
34	5304504797		Support, Motor Mount, Left		Appelez-nous	-
35	5304504775		Shroud, Condenser/fan		Appelez-nous	-
36	5304504803		Cabinet, Wrapper/sleeve		Appelez-nous	-
37	5304504780		Rail, Shutter Track, Top Angle		Appelez-nous	-
38	5304472191		Screw Kit, Top Rail Mount				$ 16.22
39	5304491953		Hardware, Mounting, Screws/locks				$ 19.52
40	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
41	5304504781		Window Filler Kit, Slider Panels, Accordion		Appelez-nous	-
42	5304504274		Panel, Insulation, R1		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
