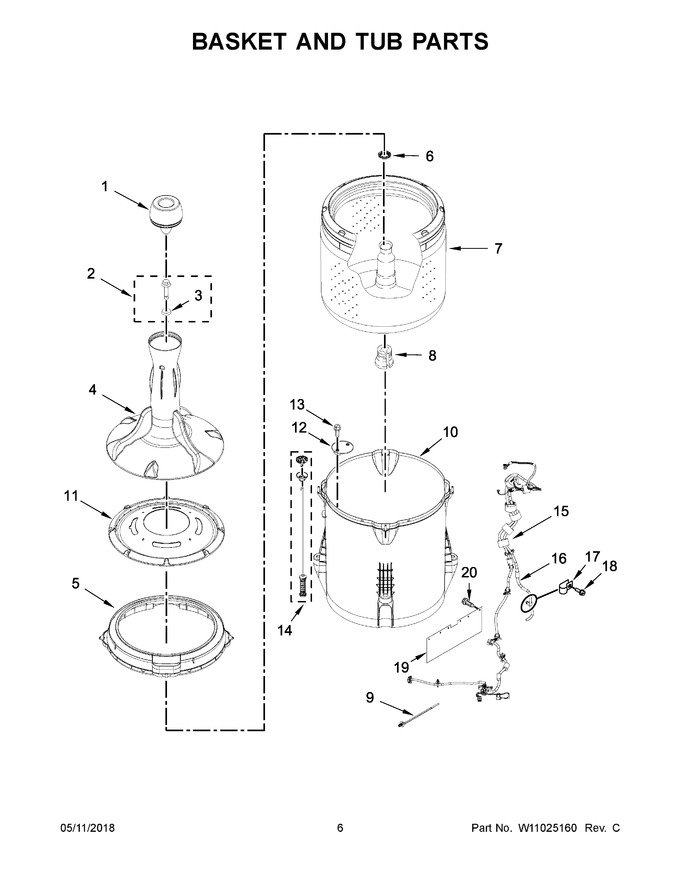

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11024702 | Dispenser, Fabric Softener (Replaces: W10680192) |
|
$ 76.94 | |||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | W10908289 | Agitator (Replaces: W10680208) |
|
Immediately | $ 97.52 | ||||
| 5 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 137.61 | ||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 7 | W10554251 | Basket Assembly |
|
Immediately | $ 411.63 | ||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 9 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.90 | |||||
| 10 | W10371566 | Tub (Replaces: W10238320) |
|
$ 339.37 | |||||
| 11 | W11085570 | Base Shield (Replaces: W10723583) |
|
$ 38.64 | |||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 14 | W10780045 | Damper Assembly, Tub Suspension Set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821951) |
|
Immediately | $ 105.99 | ||||
| 15 | W10746351 | Harness, Lower |
|
- | |||||
| 16 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 22.19 | ||||
| 17 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.08 | ||||
| 18 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 19 | W10339098 | Shield, Splash |
|
$ 24.62 | |||||
| 20 | W10429200 | Retainer, Push-in |
|
- |
